SKU: PBMF405040M1G1-EU

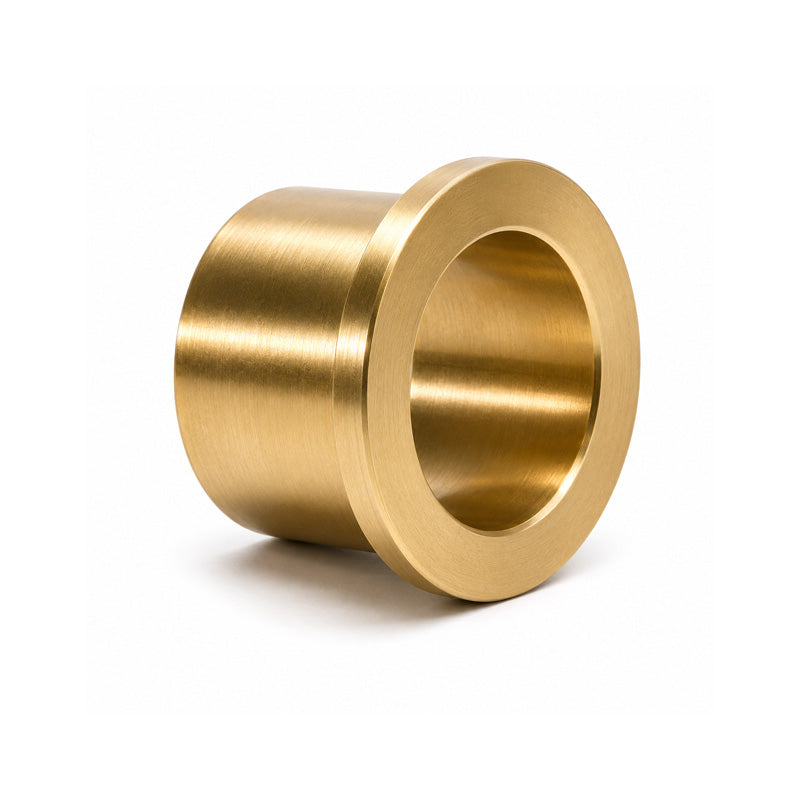

PBMF405040M1G1 Premier Budget Metric Flanged Solid Bronze Bush 40x50x40mm - Allow 2-3 Days

PBMF405040M1G1 Premier Budget Metric Flanged Solid Bronze Bush 40x50x40mm - Allow 2-3 Days
Regular price $58.88 ex VAT
Regular price Sale price $58.88 ex VAT
Sale Sold out

Equivalent to: TBF 040/050 X 040

In stock

Price Break
9+ $43.87
19+ $42.09
29+ $41.21
39+ $39.88
49+ $38.99
69+ $36.78
99+ $31.02
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d 40mm
D 50mm
B 40mm
D1 60mm
B1 6mm
a 3mm
h 41mm
a Angle 124 deg
Tolerance shaft e7
Tolerance housing H7
Specific Dynamic Load Factor ( K ) 25 N/mm 2
Specific Static Load Factor ( K0 ) 45 N/mm 2
Permissable Sliding Velocity ( v ) min. 0 m/s
Permissable Sliding Velocity ( v ) max. 0.5 m/s
Coefficient of Friction ( y ) min. 0.08
Coefficient of Friction ( y ) max. 0.15
Weight 0.2kg
