SKU: PBMF455530M1G1-EU

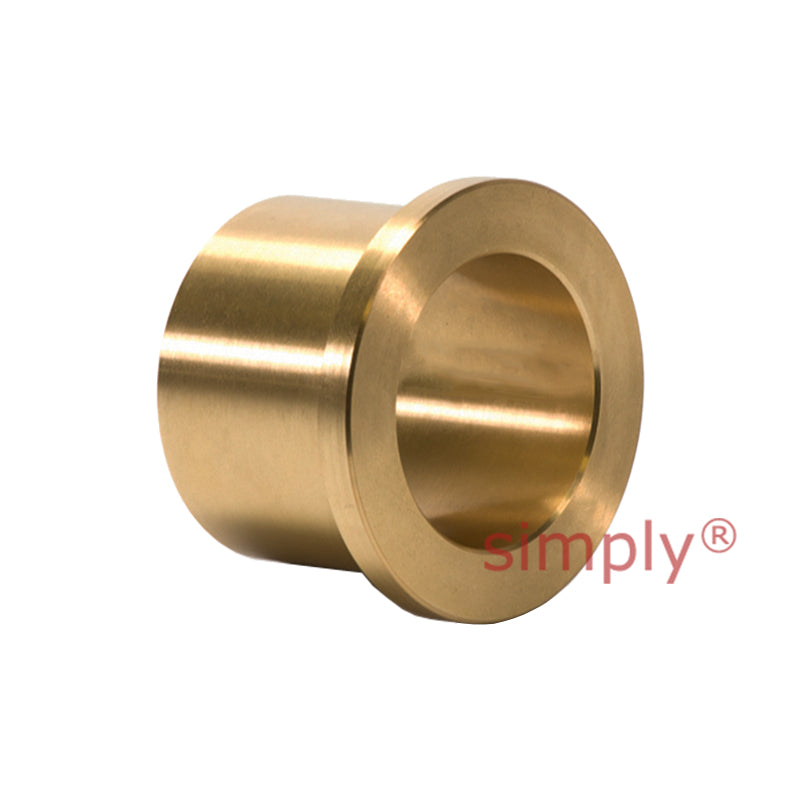

PBMF455530M1G1 Premier Budget Metric Flanged Solid Bronze Bush 45x55x30mm

Name: PBMF455530M1G1 Premier Budget Metric Flanged Solid Bronze Bush 45x55x30mm
Brand: Gen
SKU: PBMF455530M1G1-EU
Price: 42.31 USD
Availability: InStock

$42.31 ex VAT

Sale Sold out

Equivalent to: TBF 045/055 X 030

In stock

Price Break

9+ $28.34

19+ $26.75

29+ $26.43

39+ $26.11

49+ $25.79

69+ $25.48

99+ $23.88

199+ $23.56

249+ $23.25

499+ $22.93

999+ $22.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 45mm
Outside Diameter:: 55mm
Length:: 30mm

Technical

d	45mm
D	55mm
B	30mm
D1	65mm
B1	6mm
a	3mm
h	46mm
a Angle	124 deg
Tolerance shaft	e7
Tolerance housing	H7
Specific Dynamic Load Factor ( K )	25 N/mm 2
Specific Static Load Factor ( K0 )	45 N/mm 2
Permissable Sliding Velocity ( v )	min. 0 m/s
Permissable Sliding Velocity ( v )	max. 0.5 m/s
Coefficient of Friction ( y )	min. 0.08
Coefficient of Friction ( y )	max. 0.15
Weight	0.24kg
