• 14 Tooth 06B Duplex Pilot Bore Sprocket for 3/8 inch Pitch Chain
  • 14 Tooth 06B Duplex Pilot Bore Sprocket for 3/8 inch Pitch Chain
1 2

SKU: PBS-D-06B-14

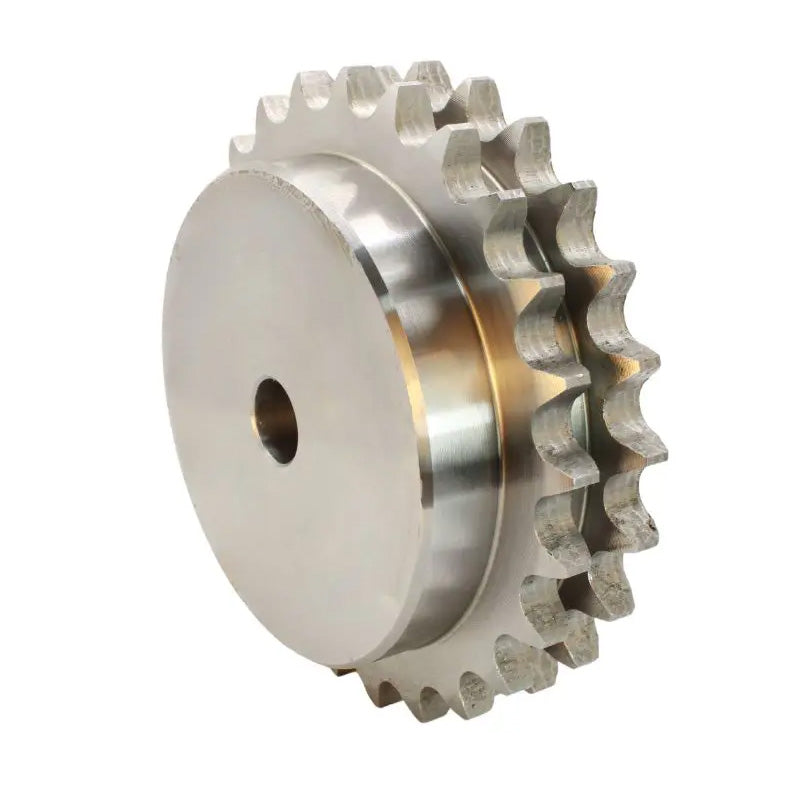

14 Tooth 06B Duplex Pilot Bore Sprocket for 3/8 inch Pitch Chain

14 Tooth 06B Duplex Pilot Bore Sprocket for 3/8 inch Pitch Chain
$11.93 ex VAT
$11.93 ex VAT
Sale Sold out

Equivalent to: PD05014 06B2 PS32-14

In stock

Price Break
5+ $7.99
9+ $7.54
19+ $7.45
29+ $7.36
49+ $7.27
74+ $7.18
99+ $6.73
199+ $6.64
249+ $6.55
499+ $6.47
999+ $6.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
14
Pitch:
9.53mm = 0.375 (3/8) inch
Item Type:
BS European Standard

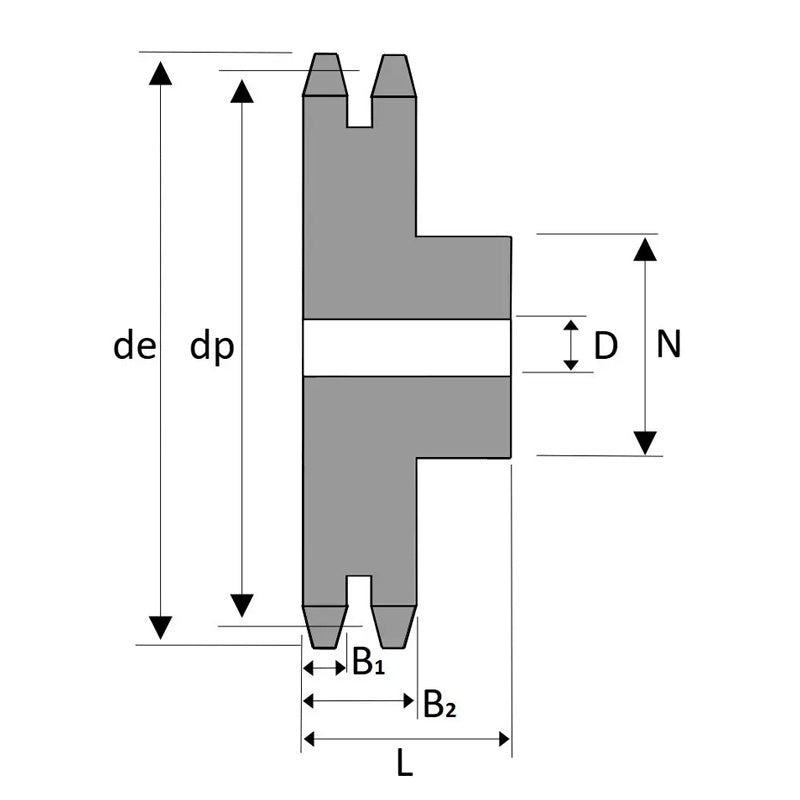

Technical
Tooth Radius r3 10mm
Chamfer c 1mm
Tooth Width b1 5.2mm
Tooth Width B1 5.3mm
Tooth Width B2 15.4mm
Tooth Width B3 25.6mm
Pitch 9.525mm
Width Between Inner 5.72mm
Roller Diameter 6.35mm
No. of Teeth 14
Outer Diameter de 46.3mm
Pitch Diameter dp 42.8mm
Hub Diameter dm 31mm
Length Through Bore A 25mm
Stock Bore D1 10mm
