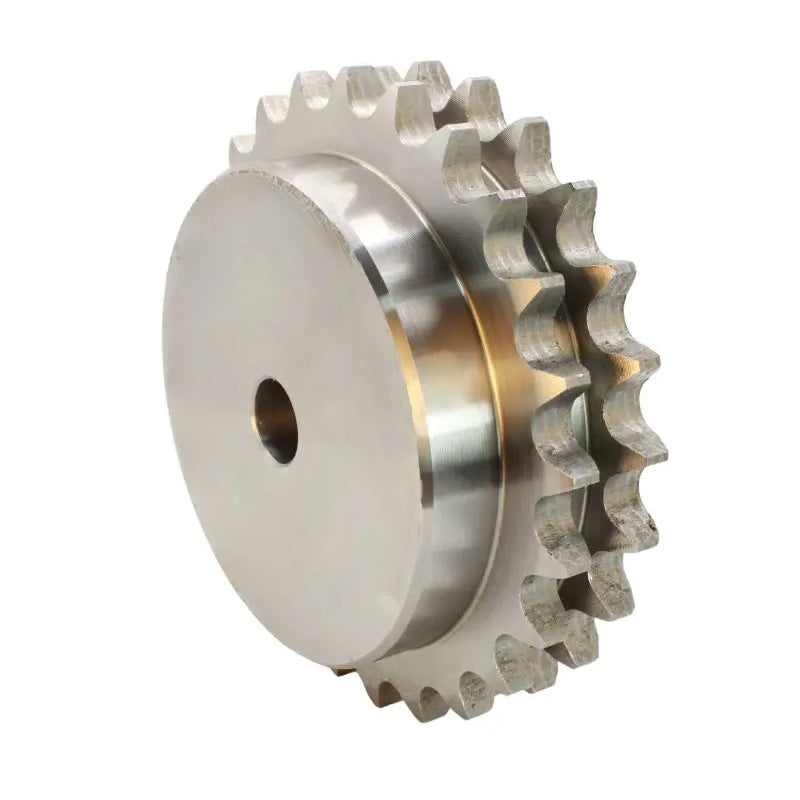

• 21 Tooth 10B Duplex Pilot Bore Sprocket for 5/8 inch Pitch Chain
  • 21 Tooth 10B Duplex Pilot Bore Sprocket for 5/8 inch Pitch Chain
1 2

SKU: PBS-D-10B-21

21 Tooth 10B Duplex Pilot Bore Sprocket for 5/8 inch Pitch Chain

21 Tooth 10B Duplex Pilot Bore Sprocket for 5/8 inch Pitch Chain
$36.66 ex VAT
$36.66 ex VAT
Sale Sold out

Equivalent to: PD10021 10B2 PS52-21

In stock

Price Break
5+ $24.55
9+ $23.17
19+ $22.90
29+ $22.62
49+ $22.35
74+ $22.07
99+ $20.69
199+ $20.42
249+ $20.14
499+ $19.86
999+ $19.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
21
Pitch:
15.88mm = 0.625 (5/8) inch
Item Type:
BS European Standard

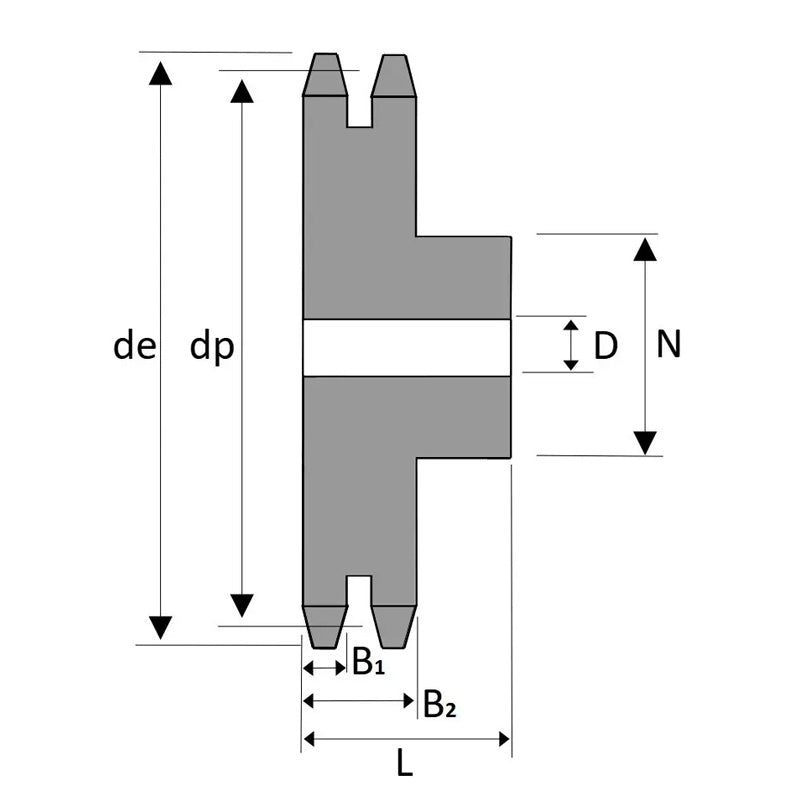

Technical
Tooth Radius r3 16mm
Chamfer c 1.6mm
Tooth Width b1 9mm
Tooth Width B1 9.1mm
Tooth Width B2 25.5mm
Tooth Width B3 42.1mm
Pitch 15.875mm
Width Between Inner 9.65mm
Roller Diameter 10.16mm
No. of Teeth 21
Outer Diameter de 113.4mm
Pitch Diameter dp 106.52mm
Hub Diameter dm 85mm
Length Through Bore A 45mm
Stock Bore D1 16mm
