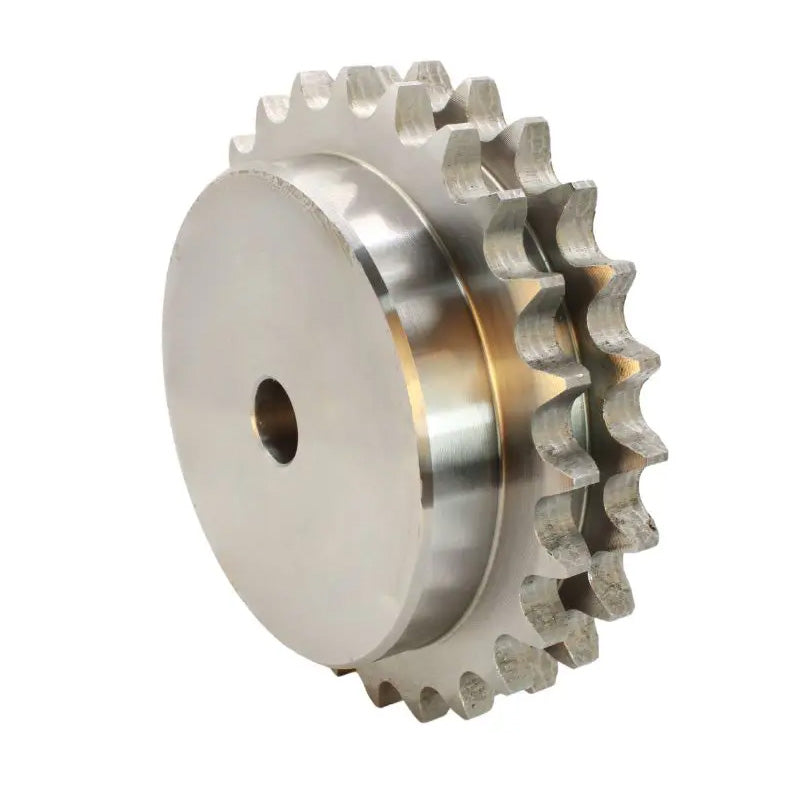

• 10 Tooth 12B Duplex Pilot Bore Sprocket for 3/4 inch Pitch Chain
  • 10 Tooth 12B Duplex Pilot Bore Sprocket for 3/4 inch Pitch Chain
1 2

SKU: PBS-D-12B-10

10 Tooth 12B Duplex Pilot Bore Sprocket for 3/4 inch Pitch Chain

10 Tooth 12B Duplex Pilot Bore Sprocket for 3/4 inch Pitch Chain
$19.97 ex VAT
$19.97 ex VAT
Sale Sold out

Equivalent to: PD11010 12B2 PS62-010

In stock

Price Break
5+ $13.38
9+ $12.63
19+ $12.48
29+ $12.33
49+ $12.18
74+ $12.03
99+ $11.28
199+ $11.13
249+ $10.97
499+ $10.82
999+ $10.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
10
Pitch:
19.05mm = 0.75 (3/4) inch
Item Type:
BS European Standard

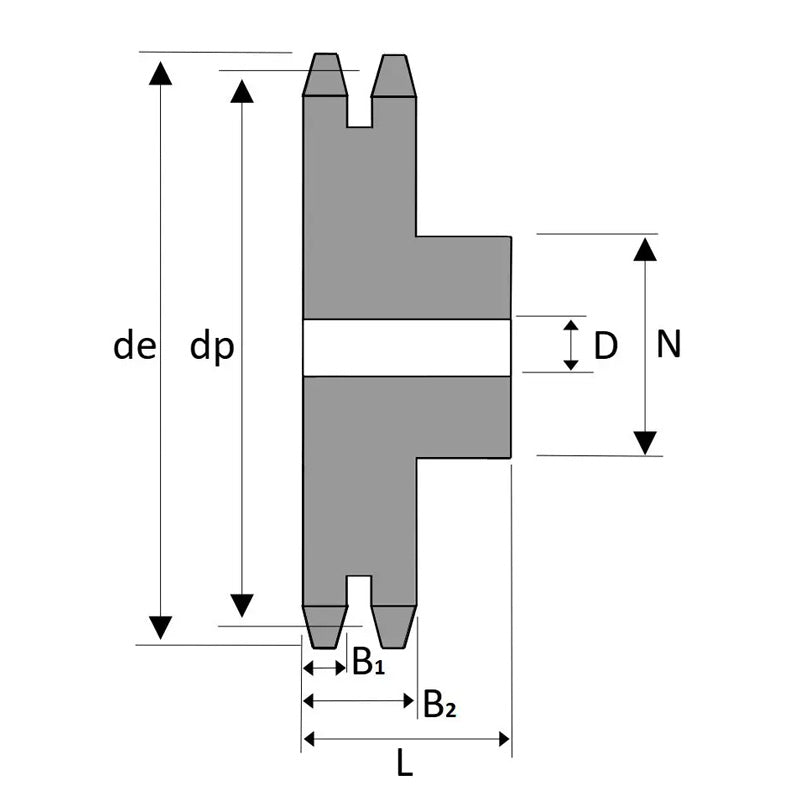

Technical
Tooth Radius r3 19mm
Chamfer c 2mm
Tooth Width b1 10.8mm
Tooth Width B1 11.1mm
Tooth Width B2 30.3mm
Tooth Width B3 49.8mm
Pitch 19.05mm
Width Between Inner 11.68mm
Roller Diameter 12.07mm
No. of Teeth 10
Outer Diameter de 69mm
Pitch Diameter dp 61.64mm
Hub Diameter dm 42mm
Length Through Bore A 45mm
Stock Bore D1 12mm
