• 16 Tooth 16B Duplex Pilot Bore Sprocket for 1 inch Pitch Chain
  • 16 Tooth 16B Duplex Pilot Bore Sprocket for 1 inch Pitch Chain
1 2

SKU: PBS-D-16B-16

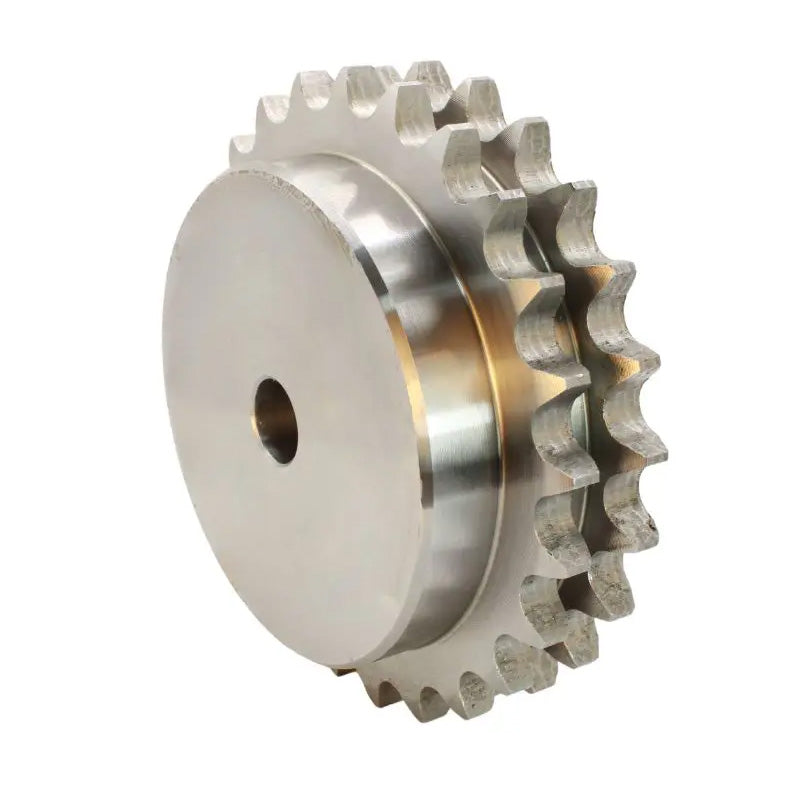

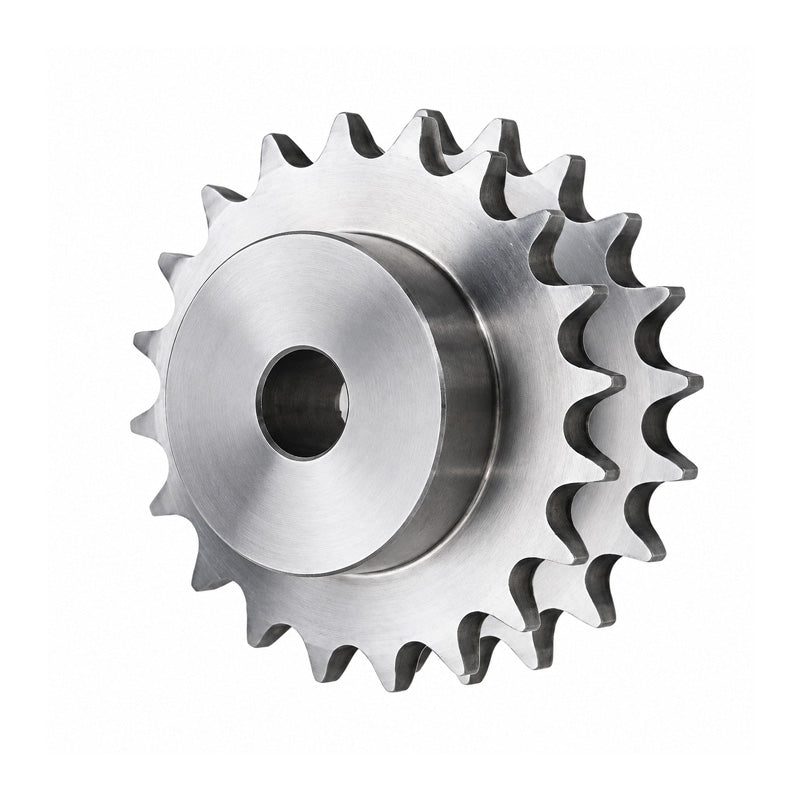

16 Tooth 16B Duplex Pilot Bore Sprocket for 1 inch Pitch Chain

16 Tooth 16B Duplex Pilot Bore Sprocket for 1 inch Pitch Chain
$71.72 ex VAT
$71.72 ex VAT
Sale Sold out

Equivalent to: PD12016 16B2 PS82-16

In stock

Price Break
5+ $48.04
9+ $45.34
19+ $44.80
29+ $44.26
49+ $43.72
74+ $43.18
99+ $40.48
199+ $39.94
249+ $39.40
499+ $38.86
999+ $37.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
16
Pitch:
25.4mm = 1 inch
Item Type:
BS European Standard

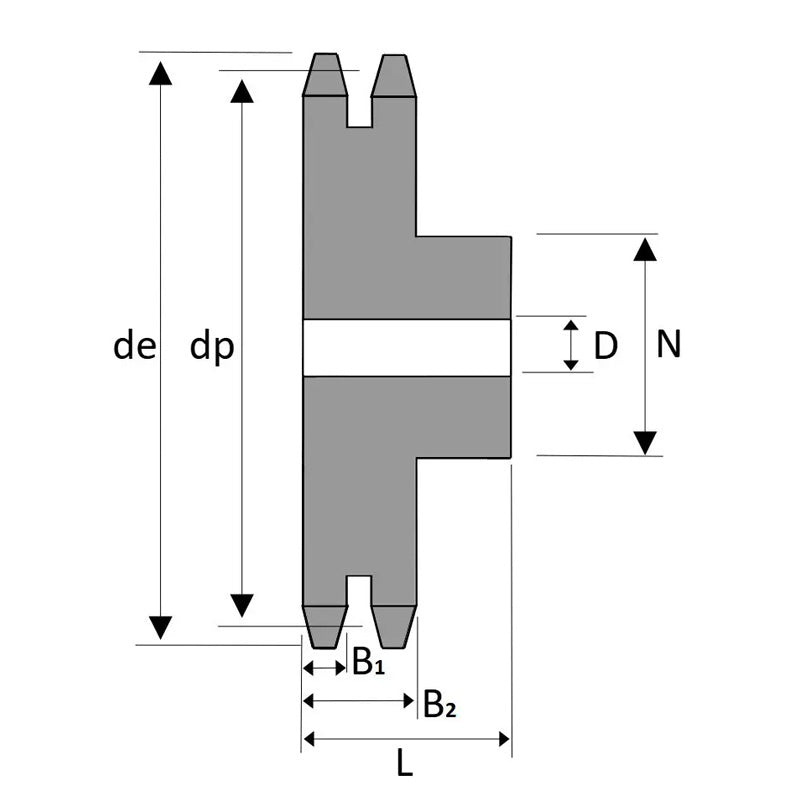

Technical
Tooth Radius r3 26mm
Chamfer c 2.5mm
Tooth Width b1 15.8mm
Tooth Width B1 16.2mm
Tooth Width B2 47.7mm
Tooth Width B3 79.6mm
Pitch 25.4mm
Width Between Inner 17.02mm
Roller Diameter 15.88mm
No. of Teeth 16
Outer Diameter de 141mm
Pitch Diameter dp 130.2mm
Hub Diameter dm 104mm
Length Through Bore A 70mm
Stock Bore D1 25mm
