SKU: PBS-DS-10B-13

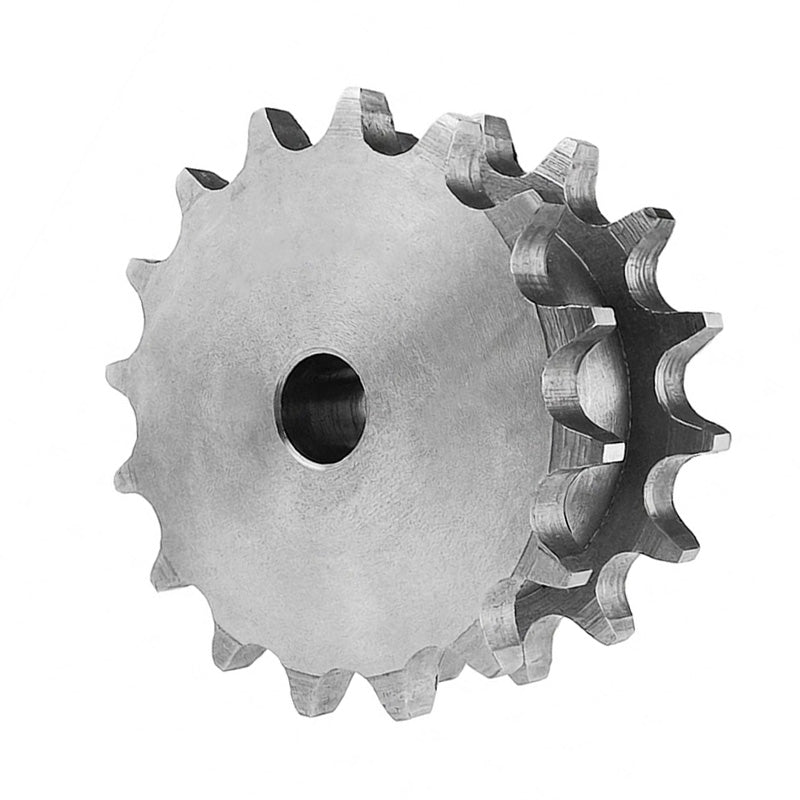

13 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- $21.82 ex VAT
- Sale price
- $21.82
- Regular price
-
In stock
Quantity Price Breaks
5
$19.42
9
$18.33
19
$18.11
29
$17.89
49
$17.67
74
$17.46
99
$16.37
199
$16.15
249
$15.93
499
$15.71
999
$15.27
SKU:
PBS-DS-10B-13
13 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- $21.82 ex VAT
- Sale price
- $21.82
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 13 |
| Pitch Diameter dp | = | 66.32mm |
| Outer Diameter de | = | 73mm |
| Width B | = | 36.5mm |
| Hub Diameter N | = | 50mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Stock Bore D1 | = | 19mm |
| Weight | = | 0.462 kg |
