SKU: PBS-DS-10B-16

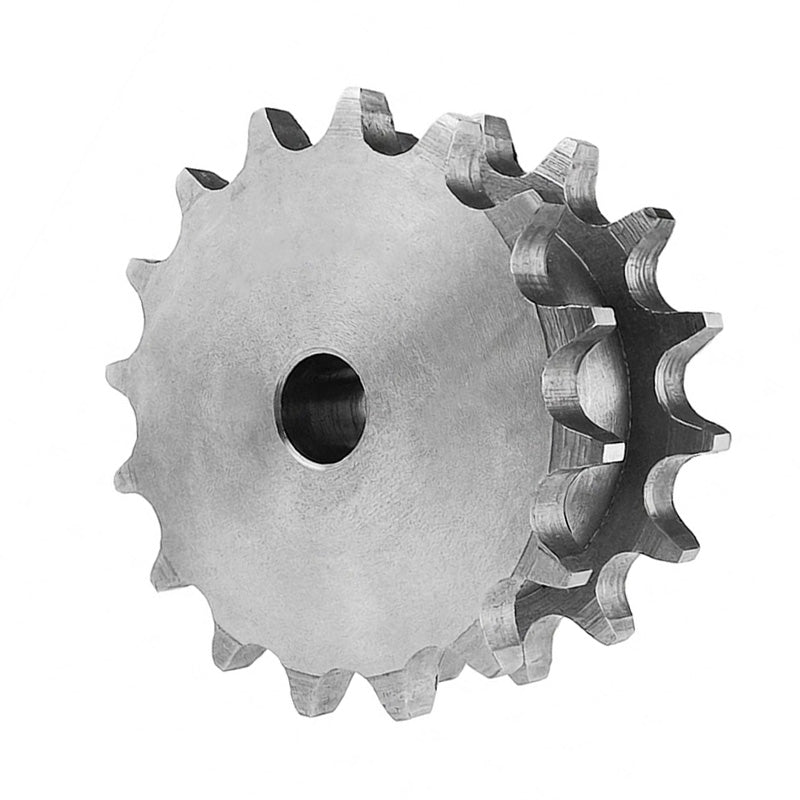

16 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- $23.18 ex VAT
- Sale price
- $23.18
- Regular price
-
In stock
Quantity Price Breaks
5
$20.63
9
$19.47
19
$19.24
29
$19.01
49
$18.78
74
$18.54
99
$17.39
199
$17.15
249
$16.92
499
$16.69
999
$16.23
SKU:
PBS-DS-10B-16
16 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- $23.18 ex VAT
- Sale price
- $23.18
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 16 |
| Pitch Diameter dp | = | 81.37mm |
| Outer Diameter de | = | 88mm |
| Width B | = | 36.5mm |
| Hub Diameter N | = | 65mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Stock Bore D1 | = | 19mm |
| Weight | = | 0.777 kg |
