SKU: PBS-DS-12B-16

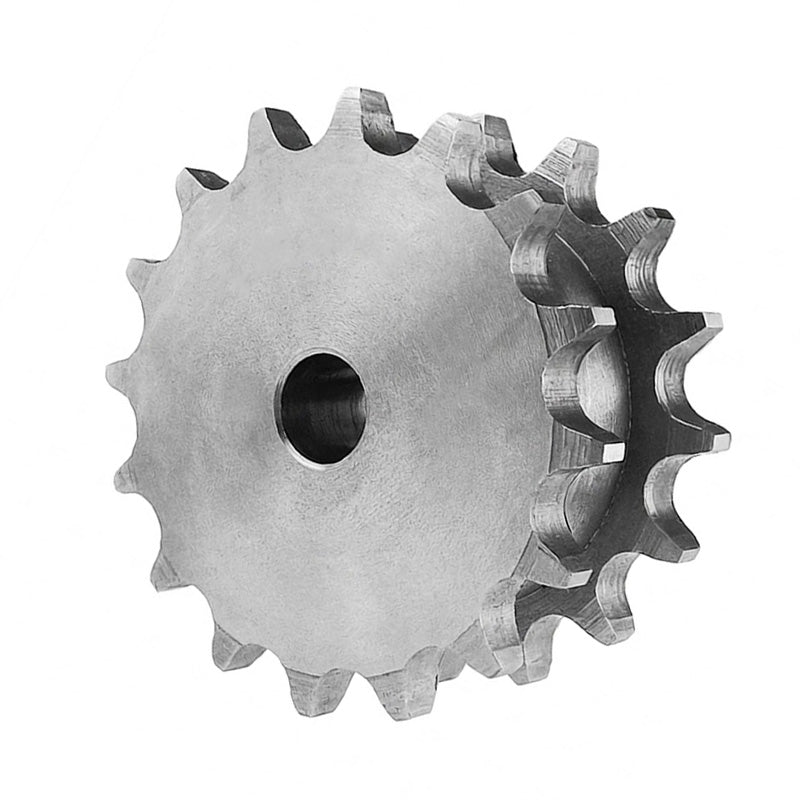

16 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
- Regular price
- $41.74 ex VAT
- Sale price
- $41.74
- Regular price
-
Not in stock
Quantity Price Breaks
5
$37.15
9
$35.06
19
$34.64
29
$34.23
49
$33.81
74
$33.39
99
$31.31
199
$30.89
249
$30.47
499
$30.05
999
$29.22
SKU:
PBS-DS-12B-16
16 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
- Regular price
- $41.74 ex VAT
- Sale price
- $41.74
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 16 |
| Pitch Diameter dp | = | 97.65mm |
| Outer Diameter de | = | 105.5mm |
| Width B | = | 45mm |
| Hub Diameter N | = | 77mm |
| Chamfer C | = | 2mm |
| Tooth Radius r3 | = | 19mm |
| Tooth Width b1 | = | 11.2mm |
| Stock Bore D1 | = | 24mm |
| Weight | = | 1.358 kg |
