SKU: PBS-DS-12B-19

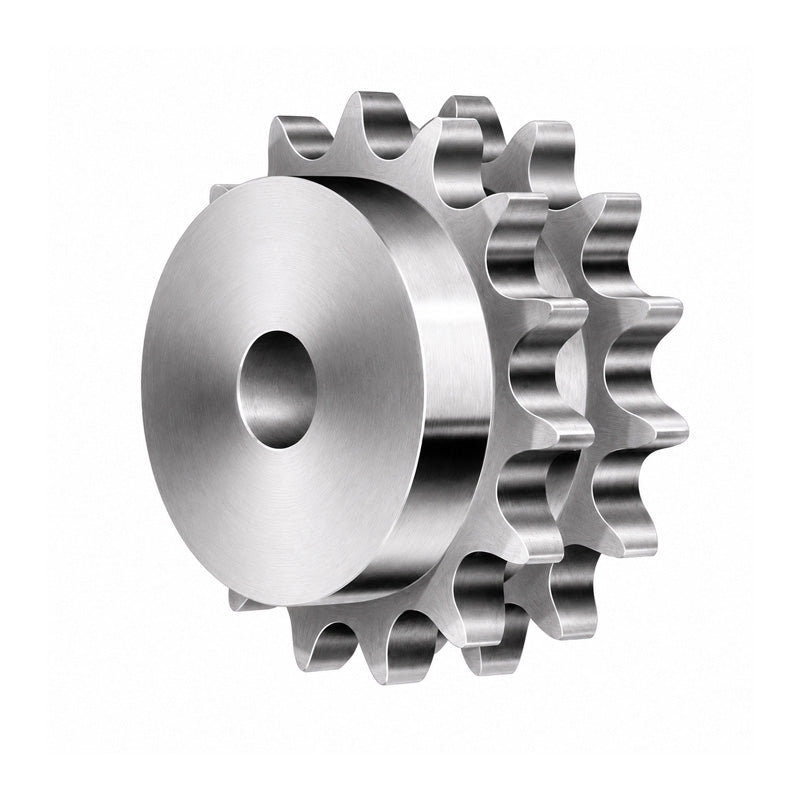

19 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
- Regular price
- $52.43 ex VAT
- Sale price
- $52.43
- Regular price
-
In stock
Quantity Price Breaks
5
$46.66
9
$44.04
19
$43.52
29
$42.99
49
$42.47
74
$41.94
99
$39.32
199
$38.80
249
$38.27
499
$37.75
999
$36.70
SKU:
PBS-DS-12B-19
19 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
- Regular price
- $52.43 ex VAT
- Sale price
- $52.43
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 19 |
| Pitch Diameter dp | = | 115.75mm |
| Outer Diameter de | = | 124.2mm |
| Width B | = | 45mm |
| Hub Diameter N | = | 95mm |
| Chamfer C | = | 2mm |
| Tooth Radius r3 | = | 19mm |
| Tooth Width b1 | = | 11.2mm |
| Stock Bore D1 | = | 24mm |
| Weight | = | 1.981 kg |
