SKU: PBS-DS-16B-18

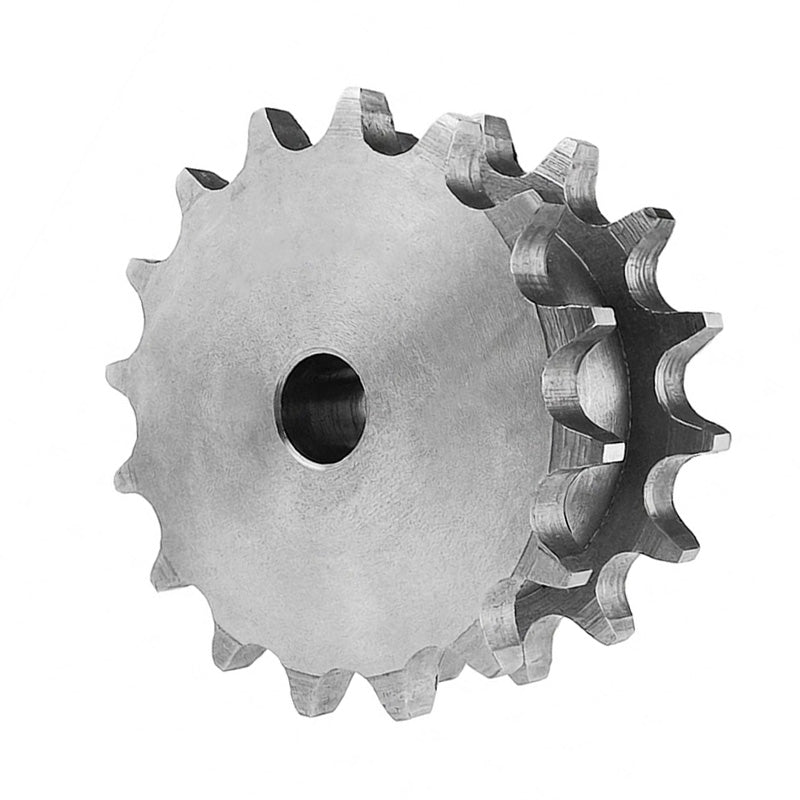

18 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- $105.25 ex VAT
- Sale price
- $105.25
- Regular price
-
Not in stock
Quantity Price Breaks
5
$93.67
9
$88.41
19
$87.36
29
$86.31
49
$85.25
74
$84.20
99
$78.94
199
$77.89
249
$76.83
499
$75.78
999
$73.68
SKU:
PBS-DS-16B-18
18 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- $105.25 ex VAT
- Sale price
- $105.25
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 18 |
| Pitch Diameter dp | = | 146.28mm |
| Outer Diameter de | = | 157mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 121mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Stock Bore D1 | = | 25mm |
| Weight | = | 4.592 kg |
