SKU: PBS-DS-16B-19

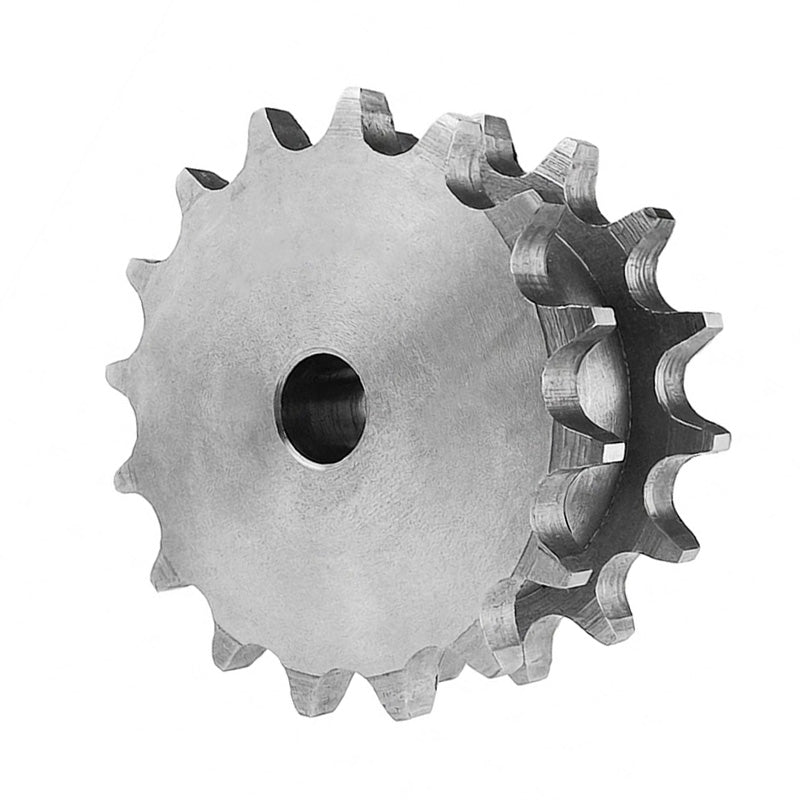

19 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- $109.79 ex VAT
- Sale price
- $109.79
- Regular price
-
Not in stock
Quantity Price Breaks
5
$97.71
9
$92.22
19
$91.13
29
$90.03
49
$88.93
74
$87.83
99
$82.34
199
$81.24
249
$80.15
499
$79.05
999
$76.85
SKU:
PBS-DS-16B-19
19 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- $109.79 ex VAT
- Sale price
- $109.79
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 19 |
| Pitch Diameter dp | = | 154.33mm |
| Outer Diameter de | = | 165.2mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 129mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Stock Bore D1 | = | 25mm |
| Weight | = | 5.18 kg |
