SKU: PBS-S-04B-9

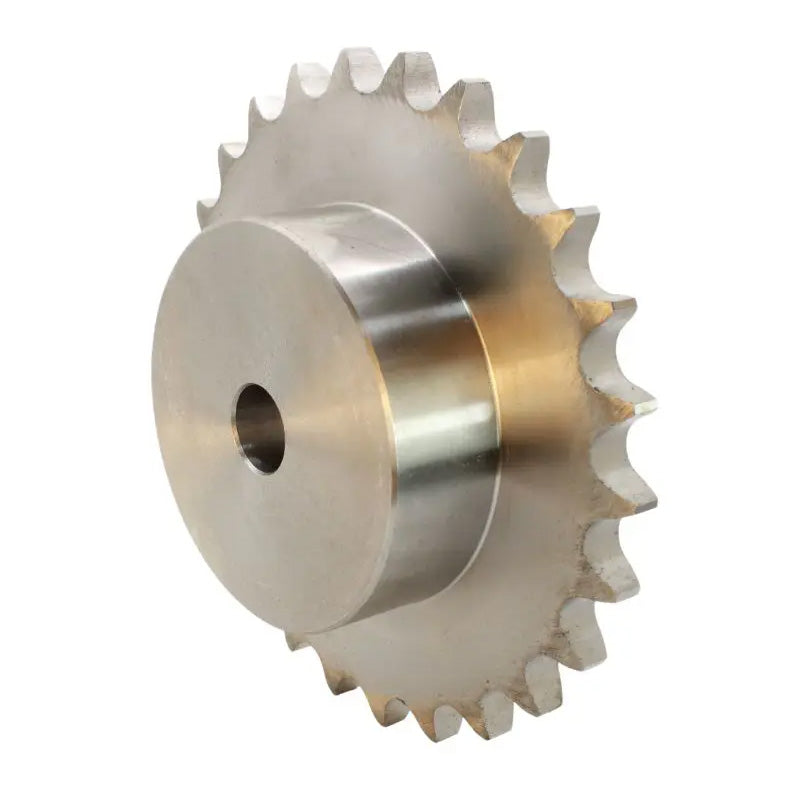

9 Tooth 04B Simplex Pilot Bore Sprocket for 6mm Pitch Chain

9 Tooth 04B Simplex Pilot Bore Sprocket for 6mm Pitch Chain
$10.04 ex VAT
$10.04 ex VAT
Sale Sold out

Equivalent to: PB104B/9 04B1

In stock

Price Break
5+ $6.73
9+ $6.35
19+ $6.28
29+ $6.20
49+ $6.13
74+ $6.05
99+ $5.67
199+ $5.60
249+ $5.52
499+ $5.45
999+ $5.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These Pilot Bore Double Simplex Sprockets allow the end-user to machine the bore to suit their own application. The bore would then require a key way to be broached and threaded holes made through the boss to secure the sprocket to the shaft. The nominal pilot bore is purely to permit tooling to be used to machine the bore to size and should not be taken as a shaft sized finish.
Benefits: Universal on the shelf stock - can be machined to suit the application. Durable and Hard wearing.
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
9
Pitch:
6mm
Item Type:
BS European Standard

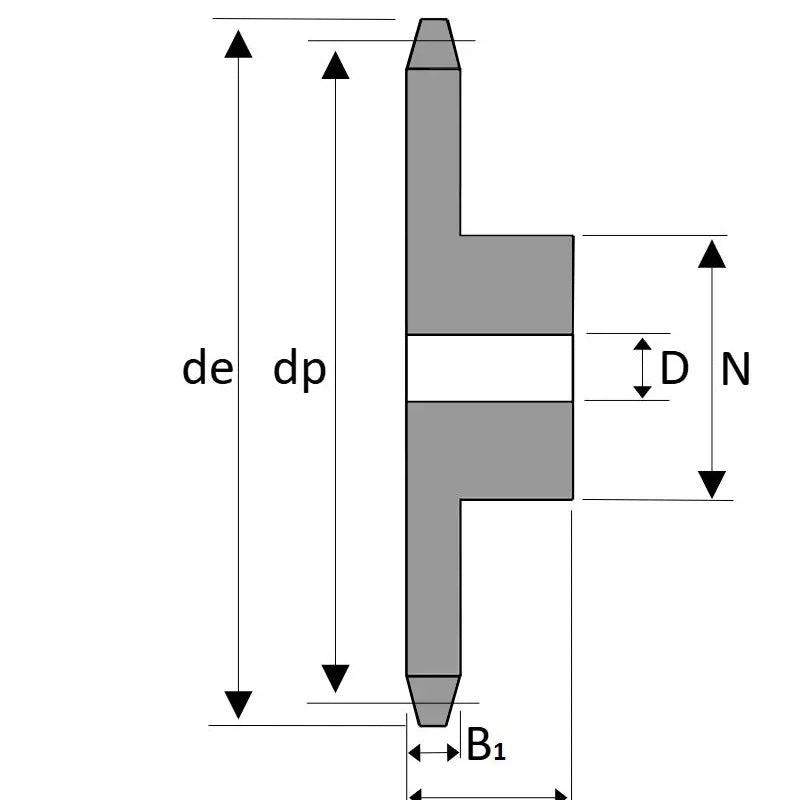

Technical
Tooth Radius r3 6mm
Chamfer c 0.7mm
Tooth Width B1 2.6mm
Pitch 6mm
Width Between Inner 2.8mm
Roller Diameter 4mm
No. of Teeth 9
Outer Diameter de 19.9mm
Pitch Diameter dp 17.54mm
Hub Diameter dm 11.5mm
Length Through Bore A 10mm
Stock Bore D1 5mm
