• 9 Tooth 08B Simplex Pilot Bore Sprocket for 1/2 inch Pitch Chain
  • 9 Tooth 08B Simplex Pilot Bore Sprocket for 1/2 inch Pitch Chain
1 2

SKU: PBS-S-08B-9

9 Tooth 08B Simplex Pilot Bore Sprocket for 1/2 inch Pitch Chain

9 Tooth 08B Simplex Pilot Bore Sprocket for 1/2 inch Pitch Chain
$9.46 ex VAT
$9.46 ex VAT
Sale Sold out

Equivalent to: PS09009 08B1 PS41-09

In stock

Price Break
5+ $6.33
9+ $5.98
19+ $5.91
29+ $5.84
49+ $5.76
74+ $5.69
99+ $5.34
199+ $5.27
249+ $5.20
499+ $5.12
999+ $4.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
9
Pitch:
12.7mm = 0.5 (1/2) inch
Item Type:
BS European Standard

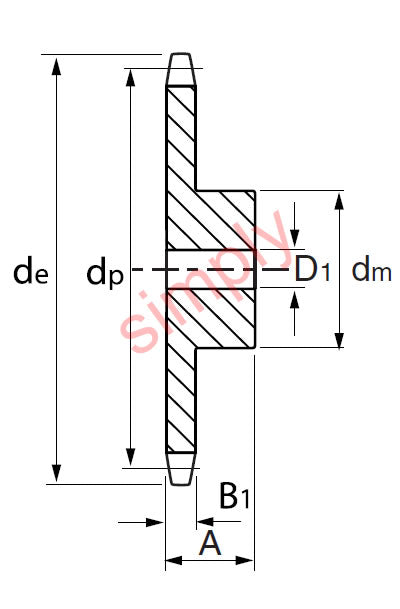

Technical
Tooth Radius r3 13mm
Chamfer c 1.3mm
Tooth Width b1 7mm
Tooth Width B1 7.2mm
Tooth Width B2 21mm
Tooth Width B3 34.9mm
Pitch 12.7mm
Width Between Inner 7.75mm
Roller Diameter 8.51mm
No. of Teeth 9
Outer Diameter de 41mm
Pitch Diameter dp 37.13mm
Hub Diameter dm 24mm
Length Through Bore A 25mm
Stock Bore D1 10mm
