• 9 Tooth 10B Simplex Pilot Bore Sprocket for 5/8 inch Pitch Chain
  • 9 Tooth 10B Simplex Pilot Bore Sprocket for 5/8 inch Pitch Chain
1 2

SKU: PBS-S-10B-9

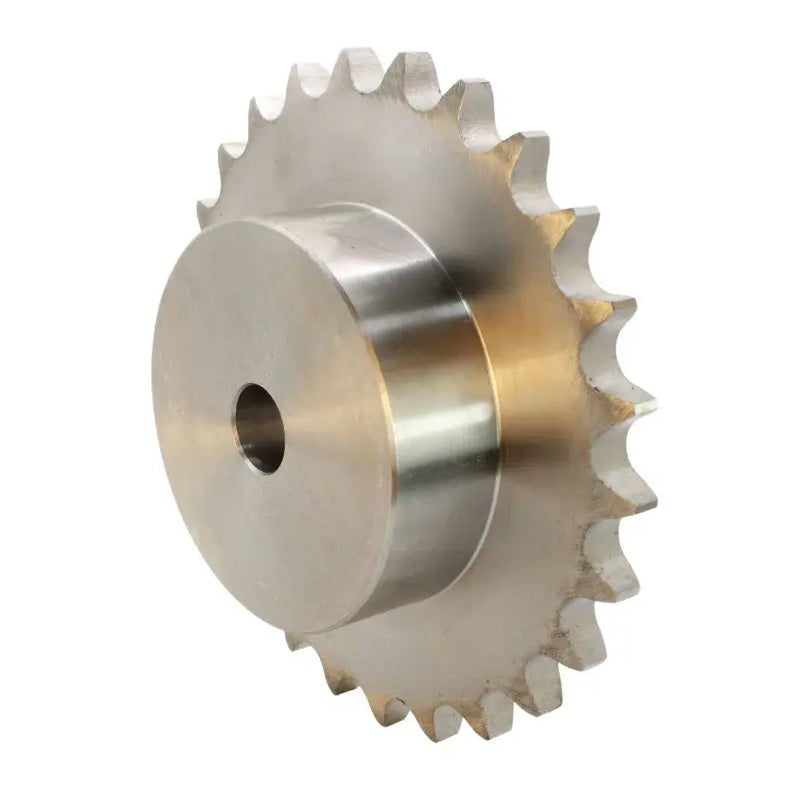

9 Tooth 10B Simplex Pilot Bore Sprocket for 5/8 inch Pitch Chain

9 Tooth 10B Simplex Pilot Bore Sprocket for 5/8 inch Pitch Chain
$11.49 ex VAT
$11.49 ex VAT
Sale Sold out

Equivalent to: PS10009 10B1 PS51-9

In stock

Price Break
5+ $7.70
9+ $7.26
19+ $7.18
29+ $7.09
49+ $7.00
74+ $6.92
99+ $6.49
199+ $6.40
249+ $6.31
499+ $6.23
999+ $6.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These Pilot Bore Double Simplex Sprockets allow the end-user to machine the bore to suit their own application. The bore would then require a key way to be broached and threaded holes made through the boss to secure the sprocket to the shaft. The nominal pilot bore is purely to permit tooling to be used to machine the bore to size and should not be taken as a shaft sized finish.
Benefits: Universal on the shelf stock - can be machined to suit the application. Durable and Hard wearing.
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
9
Pitch:
15.88mm = 0.625 (5/8) inch
Item Type:
BS European Standard

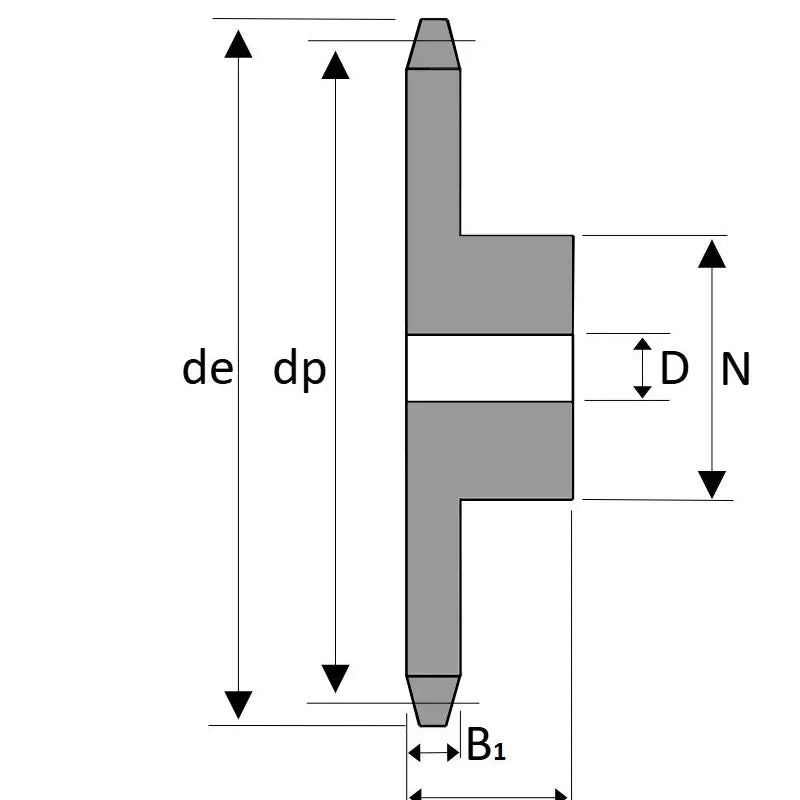

Technical
Tooth Radius r3 16mm
Chamfer c 1.6mm
Tooth Width b1 9mm
Tooth Width B1 9.1mm
Tooth Width B2 25.5mm
Tooth Width B3 42.1mm
Pitch 15.875mm
Width Between Inner 9.65mm
Roller Diameter 10.16mm
No. of Teeth 9
Outer Diameter de 52.6mm
Pitch Diameter dp 46.42mm
Hub Diameter dm 30mm
Length Through Bore A 25mm
Stock Bore D1 10mm
