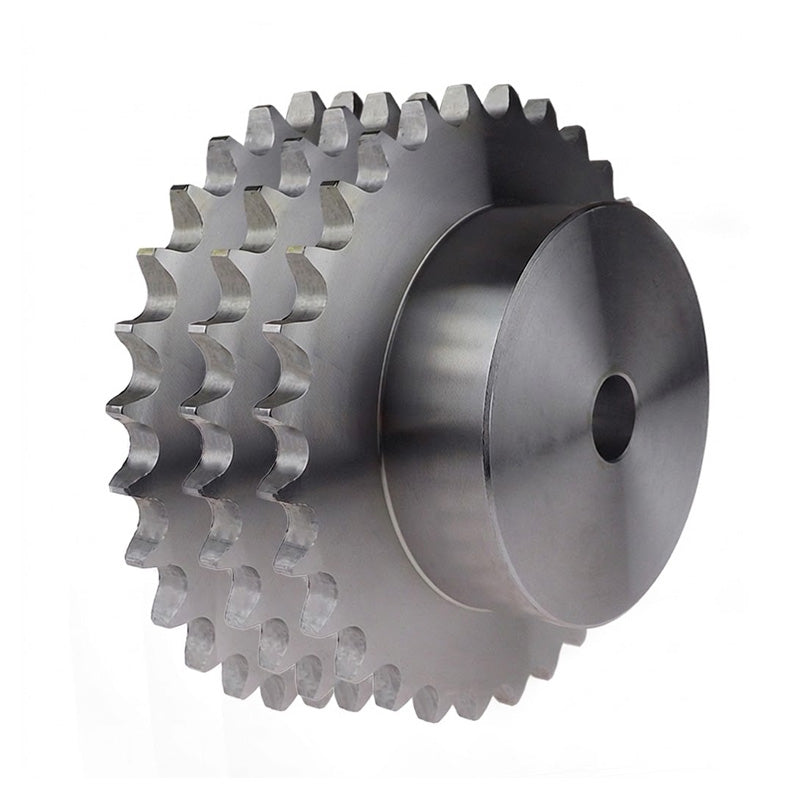

• 9 Tooth 06B Triplex Pilot Bore Sprocket for 3/8 inch Pitch Chain
1 1

SKU: PBS-T-06B-9

9 Tooth 06B Triplex Pilot Bore Sprocket for 3/8 inch Pitch Chain

9 Tooth 06B Triplex Pilot Bore Sprocket for 3/8 inch Pitch Chain
$12.57 ex VAT
$12.57 ex VAT
Sale Sold out

Equivalent to: PT05009 06B3 PS33-9

In stock

Price Break
5+ $8.42
9+ $7.95
19+ $7.85
29+ $7.76
49+ $7.66
74+ $7.57
99+ $7.09
199+ $7.00
249+ $6.91
499+ $6.81
999+ $6.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These Pilot Bore Double Simplex Sprockets allow the end-user to machine the bore to suit their own application. The bore would then require a key way to be broached and threaded holes made through the boss to secure the sprocket to the shaft. The nominal pilot bore is purely to permit tooling to be used to machine the bore to size and should not be taken as a shaft sized finish.
Benefits: Universal on the shelf stock - can be machined to suit the application. Durable and Hard wearing.
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
9
Pitch:
9.53mm = 0.375 (3/8) inch
Item Type:
BS European Standard
Technical
Tooth Radius r3 10mm
Chamfer c 1mm
Tooth Width b1 5.2mm
Tooth Width B1 5.3mm
Tooth Width B2 15.4mm
Tooth Width B3 25.6mm
Pitch 9.525mm
Width Between Inner 5.72mm
Roller Diameter 6.35mm
No. of Teeth 9
Outer Diameter de 31mm
Pitch Diameter dp 27.85mm
Hub Diameter dm 18mm
Length Through Bore A 32mm
Stock Bore D1 8mm
