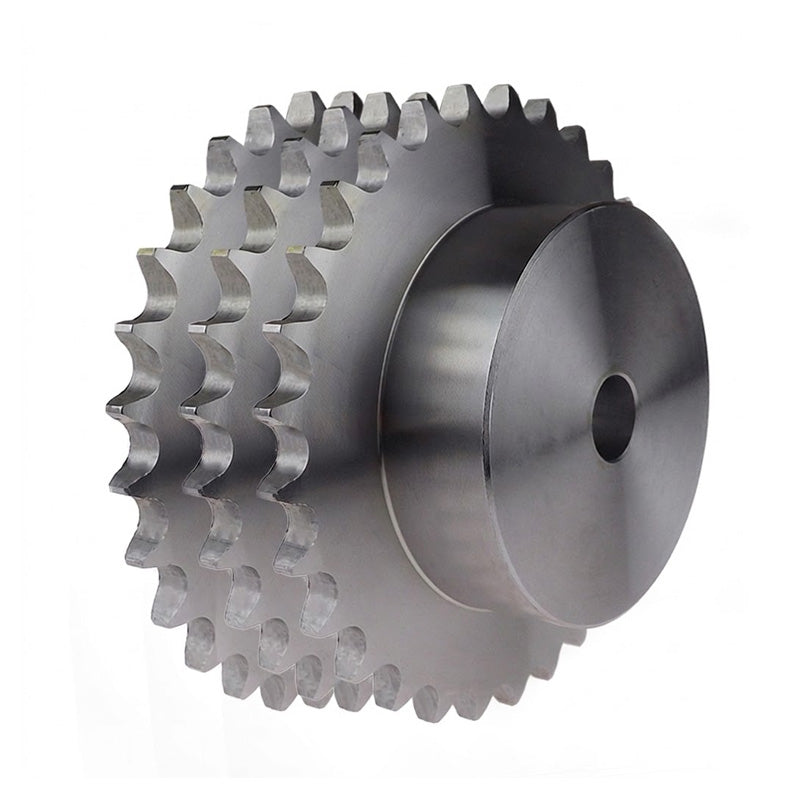

• 11 Tooth 32B Triplex Pilot Bore Sprocket for 2 inch Pitch Chain
1 1

SKU: PBS-T-32B-11

11 Tooth 32B Triplex Pilot Bore Sprocket for 2 inch Pitch Chain

11 Tooth 32B Triplex Pilot Bore Sprocket for 2 inch Pitch Chain
$309.09 ex VAT
$309.09 ex VAT
Sale Sold out

Equivalent to: 32B3

Low stock

Price Break
5+ $207.04
9+ $195.41
19+ $193.08
29+ $190.75
49+ $188.43
74+ $186.10
99+ $174.47
199+ $172.14
249+ $169.82
499+ $167.49
999+ $162.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
11
Pitch:
50.8mm = 2 inch
Item Type:
BS European Standard
Technical
Tooth Radius r3 51mm
Chamfer c 6mm
Tooth Width b1 28.8mm
Tooth Width B1 29.4mm
Tooth Width B2 87.4mm
Tooth Width B3 146mm
Pitch 50.8mm
Width Between Inner 30.99mm
Roller Diameter 29.21mm
No. of Teeth 11
Outer Diameter de 200.8mm
Pitch Diameter dp 180.31mm
Hub Diameter dm 125mm
Length Through Bore A 180mm
Stock Bore D1 35mm
