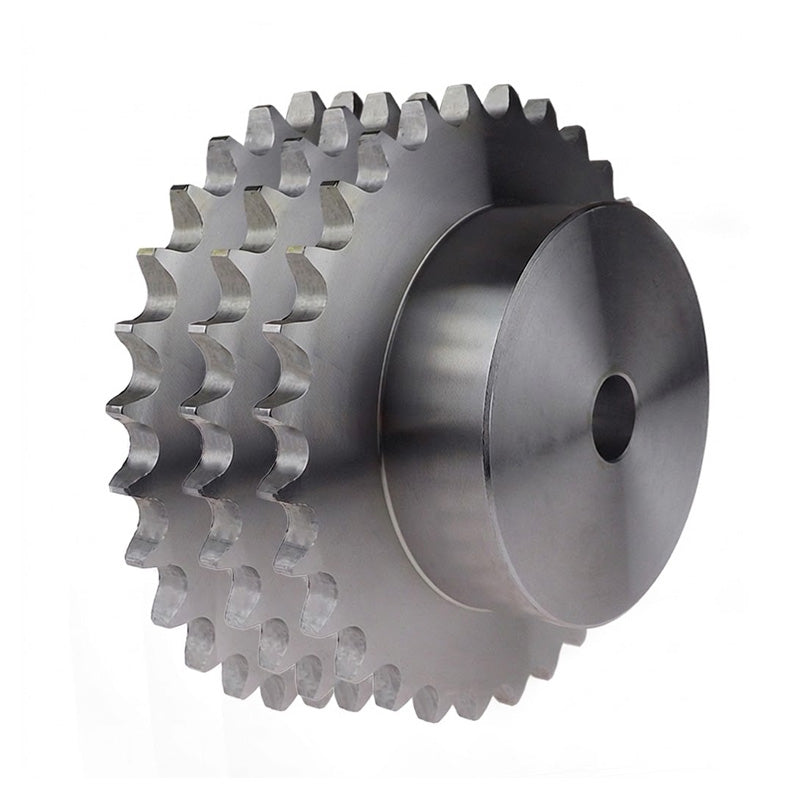

• 9 Tooth 32B Triplex Pilot Bore Sprocket for 2 inch Pitch Chain
1 1

SKU: PBS-T-32B-9

9 Tooth 32B Triplex Pilot Bore Sprocket for 2 inch Pitch Chain

9 Tooth 32B Triplex Pilot Bore Sprocket for 2 inch Pitch Chain
$245.05 ex VAT
$245.05 ex VAT
Sale Sold out

Equivalent to: 32B3

Low stock

Price Break
5+ $164.14
9+ $154.92
19+ $153.08
29+ $151.23
49+ $149.39
74+ $147.54
99+ $138.32
199+ $136.48
249+ $134.63
499+ $132.79
999+ $129.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These Pilot Bore Double Simplex Sprockets allow the end-user to machine the bore to suit their own application. The bore would then require a key way to be broached and threaded holes made through the boss to secure the sprocket to the shaft. The nominal pilot bore is purely to permit tooling to be used to machine the bore to size and should not be taken as a shaft sized finish.
Benefits: Universal on the shelf stock - can be machined to suit the application. Durable and Hard wearing.
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
9
Pitch:
50.8mm = 2 inch
Item Type:
BS European Standard
Technical
Tooth Radius r3 51mm
Chamfer c 6mm
Tooth Width b1 28.8mm
Tooth Width B1 29.4mm
Tooth Width B2 87.4mm
Tooth Width B3 146mm
Pitch 50.8mm
Width Between Inner 30.99mm
Roller Diameter 29.21mm
No. of Teeth 9
Outer Diameter de 169mm
Pitch Diameter dp 148.53mm
Hub Diameter dm 100mm
Length Through Bore A 180mm
Stock Bore D1 30mm
