SKU: PBY15-XL-INA

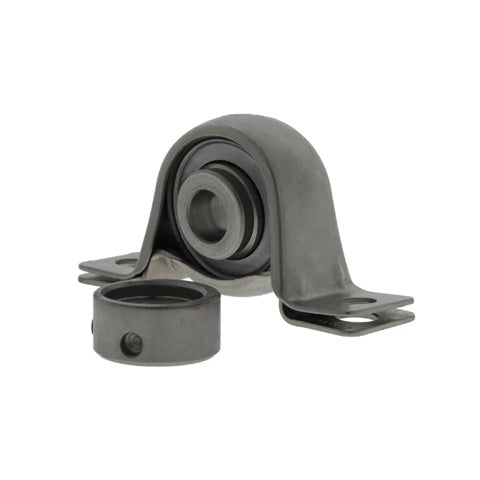

INA PBY15XL Sheet Steel Plummer Block Housing with Grub Screw Insert 15mm Bore

Name: INA PBY15XL Sheet Steel Plummer Block Housing with Grub Screw Insert 15mm Bore
Brand: INA
SKU: PBY15-XL-INA
Price: 28.25 USD
Availability: InStock

$28.25 ex VAT

Sale Sold out

In stock

Price Break

4+ $18.92

9+ $17.86

19+ $17.65

29+ $17.43

39+ $17.22

49+ $17.01

59+ $15.95

69+ $15.73

79+ $15.52

89+ $15.31

99+ $14.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction.
Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing.

Brand / Quality:: INA - High Quality
Inside Diameter:: 15mm
Style:: PBY
Bolt Hole Centres:: 68mm

Technical

d	15mm
L	85.7mm
H2	43.2mm
A	25.4mm
A1	18.4mm
B	22mm
H	22.2mm
H1	2.6mm
J	68mm
N	9.5mm
S1	16mm
Mass	0.15 kg
Load carrying capacity of housing Cor G	1350 N
Basic dynamic load rating Cr	10100 N
Basic static load rating Cor	4750 N
Designation of housing	GEH40-BT?
Designation of bearing	AY15-XL-NPP-B?
