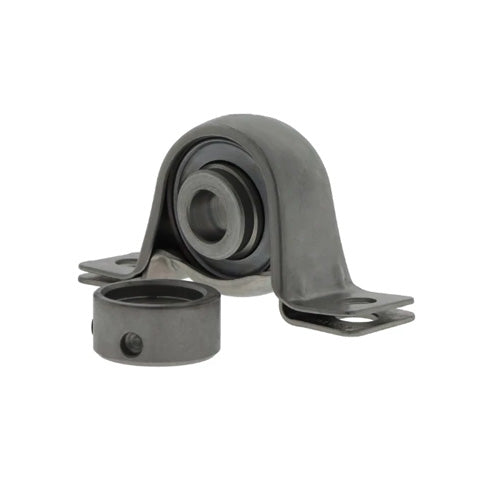

INA PBY30XL Sheet Steel Plummer Block Housing with Grub Screw Insert 30mm Bore

Name: INA PBY30XL Sheet Steel Plummer Block Housing with Grub Screw Insert 30mm Bore
Brand: INA
SKU: PBY30-XL-INA
Price: 41.64 USD
Availability: InStock

$41.64 ex VAT

Sale Sold out

In stock

Price Break

4+ $27.89

9+ $26.33

19+ $26.01

29+ $25.70

39+ $25.39

49+ $25.07

59+ $23.51

69+ $23.19

79+ $22.88

89+ $22.56

99+ $21.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction.
Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing.

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Style:: PBY
Bolt Hole Centres:: 95mm

Technical

d	30mm
L	117.5mm
H2	66.1mm
A	38mm
A1	26.5mm
B	30mm
H	33.3mm
H1	4mm
J	95mm
N	11.5mm
S1	21mm
Mass	0.4 kg
Load carrying capacity of housing Cor G	2700 N
Basic dynamic load rating Cr	20700 N
Basic static load rating Cor	11300 N
Designation of housing	GEH62-BT?
Designation of bearing	AY30-XL-NPP-B?
