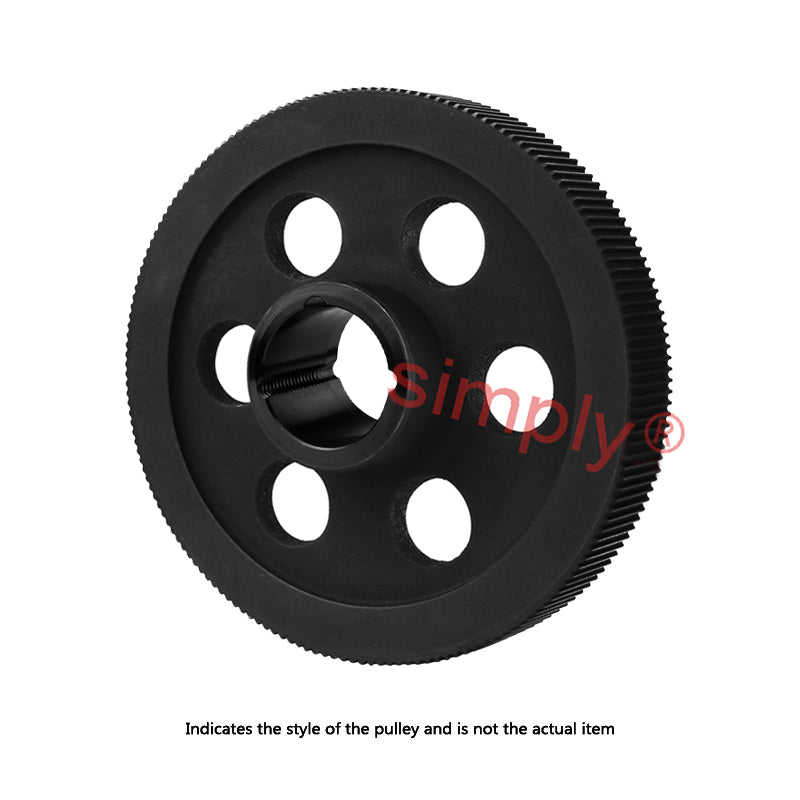

• Drive-Flex PC14M-192S-90 - 14mm Pitch 192 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 90mm Wide Belts
1 1

SKU: PC14M-192S-90-DRIVEFLEX

Drive-Flex PC14M-192S-90 - 14mm Pitch 192 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 90mm Wide Belts

Drive-Flex PC14M-192S-90 - 14mm Pitch 192 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 90mm Wide Belts
$2,272.91 ex VAT
$2,272.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,625.10
5+ $1,539.57
9+ $1,454.04
19+ $1,368.50
49+ $1,334.29
74+ $1,300.08
99+ $1,129.02
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Number of Teeth:
192
Pitch:
14mm
Item Type:
Taper Bore Pulley
Maximum Belt Width:
90mm
Technical
Material Cast Iron
No. teeth 192
Schematic Type 10
Bush no. 5040
Belt Width 90mm
Max. bore (metric) 130mm
Dp 855.61mm
De 852.82mm
Di 812mm
Dm 267mm
F 106mm
P 2mm
S 102mm
Weight Kg 116.5 kg
