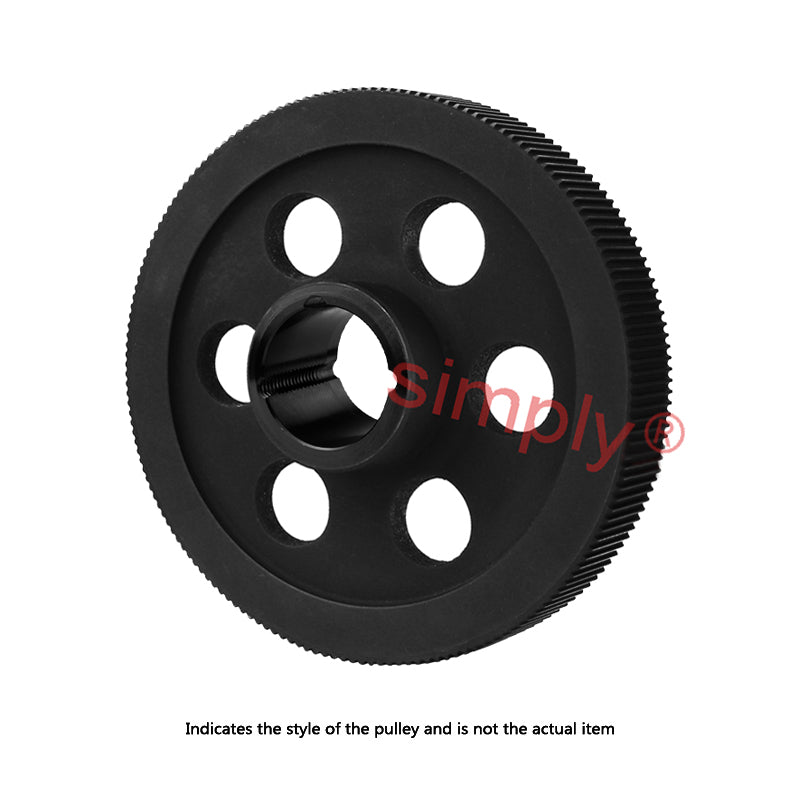

• Drive-Flex PC14M-90S-20 - 14mm Pitch 90 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 20mm Wide Belts
1 1

SKU: PC14M-90S-20-DRIVEFLEX

Drive-Flex PC14M-90S-20 - 14mm Pitch 90 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 20mm Wide Belts

Drive-Flex PC14M-90S-20 - 14mm Pitch 90 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 20mm Wide Belts
$588.84 ex VAT
$588.84 ex VAT
Sale Sold out

In stock

Price Break
3+ $438.74
5+ $421.01
9+ $412.15
19+ $398.85
49+ $389.99
74+ $367.83
99+ $310.22
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Number of Teeth:
90
Pitch:
14mm
Item Type:
Taper Bore Pulley
Maximum Belt Width:
20mm
Technical
Material Cast Iron
No. teeth 90
Schematic Type 10
Bush no. 3020
Belt Width 20mm
Max. bore (metric) 75mm
Dp 401.07mm
De 398.27mm
Di 360mm
Dm 159mm
F 33mm
P 9mm
S 51mm
Weight Kg 16 kg
