SKU: PC14M-90S-37-TB

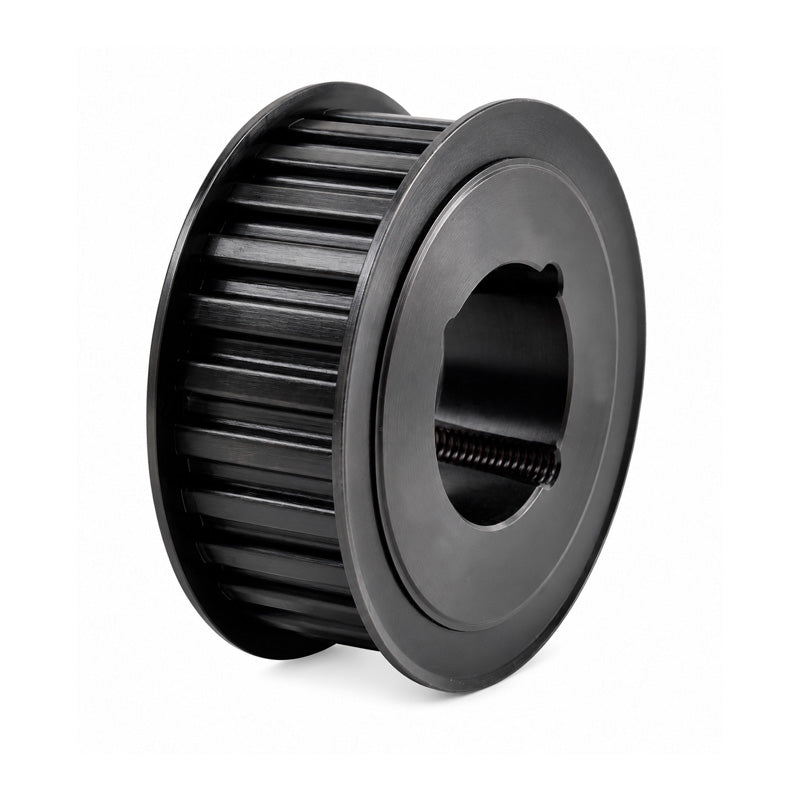

Martin Synchrochain / Polychain PC14M-90S-37 401.07mm Pitch Diameter 90 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days

Martin Synchrochain / Polychain PC14M-90S-37 401.07mm Pitch Diameter 90 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days

Equivalent to: 14M-90S-37

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

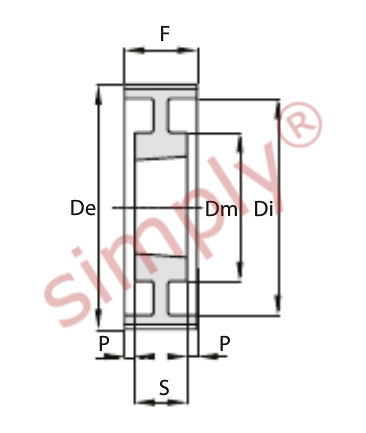

No. teeth 90
Bush no. <a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=3020+tapered+locking">3020 Click Here</a>
Max. Bore 75mm
Pitch Diameter Dp 401.07mm
External Diameter of Teeth De 398.27mm
Di 360mm
Hub Diameter Dm 159mm
Width over Flanges F 51mm
S 51mm
Pitch 14mm
