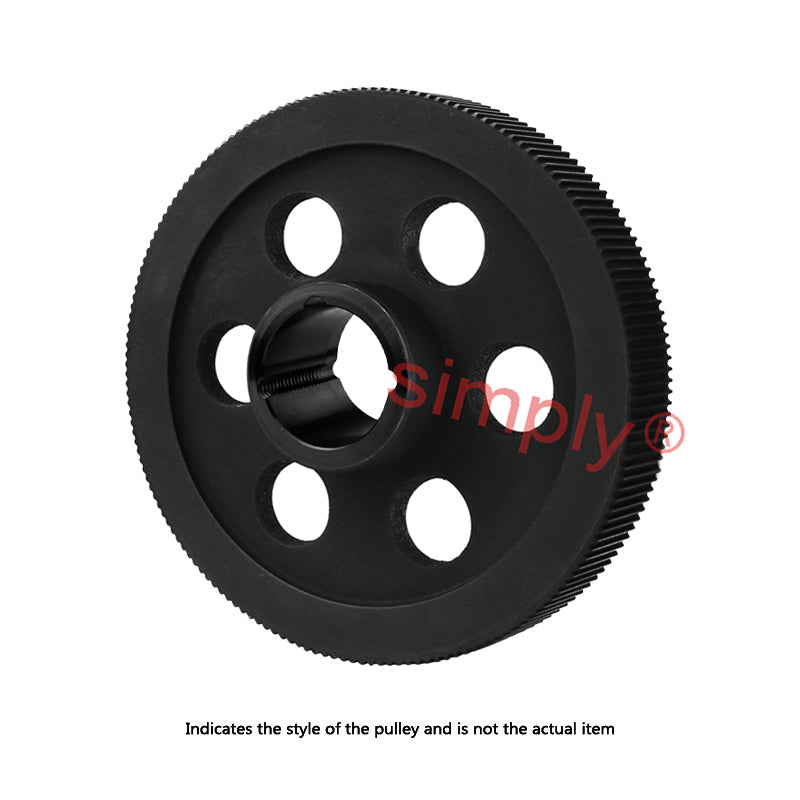

• Drive-Flex PC8M-192S-36 - 8mm Pitch 192 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 36mm Wide Belts
1 1

SKU: PC8M-192S-36-DRIVEFLEX

Drive-Flex PC8M-192S-36 - 8mm Pitch 192 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 36mm Wide Belts

Drive-Flex PC8M-192S-36 - 8mm Pitch 192 Tooth Polychain and Synchrochain Cast Iron Taper Bore Timing Belt Pulley for 36mm Wide Belts
$588.79 ex VAT
$588.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $438.70
5+ $420.97
9+ $412.11
19+ $398.82
49+ $389.95
74+ $367.80
99+ $310.19
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Number of Teeth:
192
Pitch:
8mm
Item Type:
Taper Bore Pulley
Maximum Belt Width:
36mm
Technical
Material Cast Iron
No. teeth 192
Schematic Type 10
Bush no. 3525
Belt Width 36mm
Max. bore (metric) 100mm
Dp 488.92mm
De 487.32mm
Di 457mm
Dm 198mm
F 45mm
P 10mm
S 65mm
Weight Kg 27.8 kg
