SKU: PC8M-30S-21

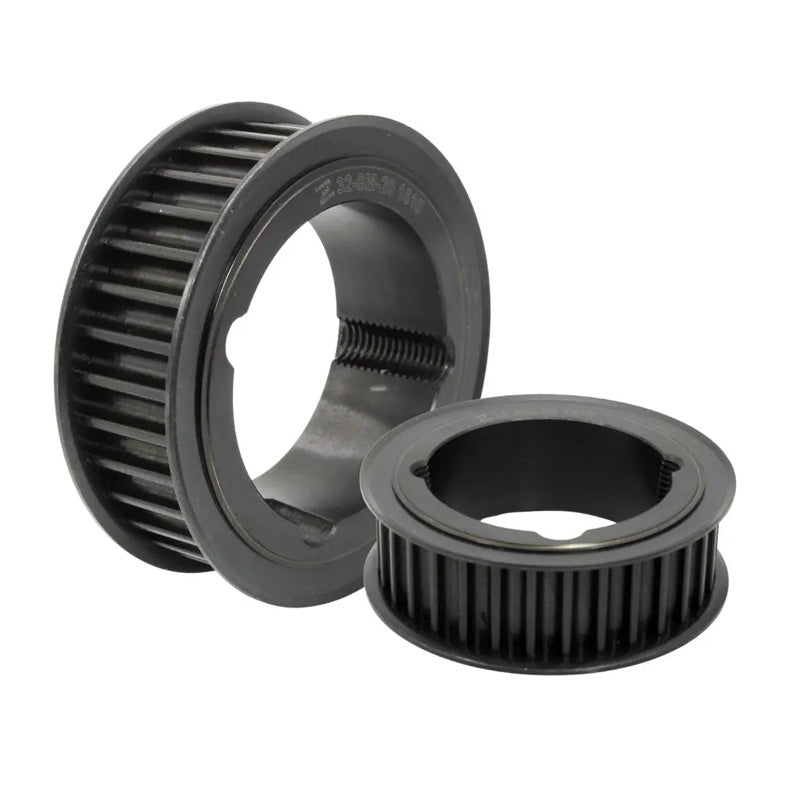

PC8M-30S-21 - 8mm Pitch 30 Tooth Polychain and Synchrochain Steel Taper Bore Timing Belt Pulley for 21mm Wide Belts - Allow 2-3 Days
Equivalent to: Polychain 8M-30S-21 / Synchrochain 30-C8M-21
In stock
Price Break
Share this product
Description
C8M Polychain and Synchrochain Timing Belt Pulley: We offer a comprehensive selection of timing pulleys (sprockets) designed for use with Synchrochain and Poly Chain belts. These pulleys are available in both pilot bore and taper lock bush types, accommodating a variety of applications. Manufactured from high-quality materials such as steel or cast iron with steel flanges, These pulleys meet industry standards, ensuring they deliver reliable, high-power performance. With a broad range of options and precisely engineered profiles, these pulleys provide a cost-effective solution without compromising on quality or durability.
Benefits: High-quality and durable, cost-effective solution, wide range availability
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 30
- Pitch:
- 8mm
- Item Type:
- Taper Bore Pulley
- Maximum Belt Width:
- 21mm
Technical
| Material | Steel |
|---|---|
| No. teeth | 30 |
| Schematic Type | 3F |
| Bush no. | 1210 |
| Belt Width | 21mm |
| Max. bore (metric) | 32mm |
| Dp | 76.39mm |
| De | 74.79mm |
| Df | 82.5mm |
| F | 30mm |
| P | 5mm |
| S | 25mm |
| Weight Kg | 0.51 kg |
