• INA PCCJ25 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 25mm Bore
  • INA
1 2

SKU: PCCJ25-INA

INA PCCJ25 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 25mm Bore

INA PCCJ25 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 25mm Bore
$106.95 ex VAT
$106.95 ex VAT
Sale Sold out

In stock

Price Break
4+ $71.64
9+ $67.61
19+ $66.81
29+ $66.00
39+ $65.20
49+ $64.39
59+ $60.37
69+ $59.56
79+ $58.76
89+ $57.95
99+ $56.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

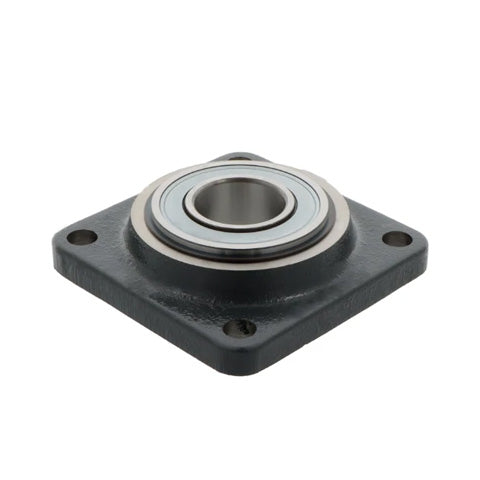

INA 4 Bolt Square Housing Units: Supplied with a fully sealed double row angular contact ball bearing fitted in the housing. This square cast iron housing has through holes for location purposes.
Benefits: Re-lubricatable, sealed on both sides, maintenance-free.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
PCCJ
Bolt Hole Centres:
70mm
Technical
d 25mm
L 95mm
B 30mm
A 22.1mm
A1 12mm
A2 11.7mm
a 24mm
J 70mm
N 11.5mm
Q M6
R max 64mm
S 2.4mm
U 26.7mm
Z 52mm (Tolerance: h8)
Mass 0.79 kg
Basic dynamic load rating Cr 21600 N
Basic static load rating Cor 14900 N
Fatigue limit load Cur 750 N
Designation of housing CCJ05
Designation of bearing G5205-2RS-N
