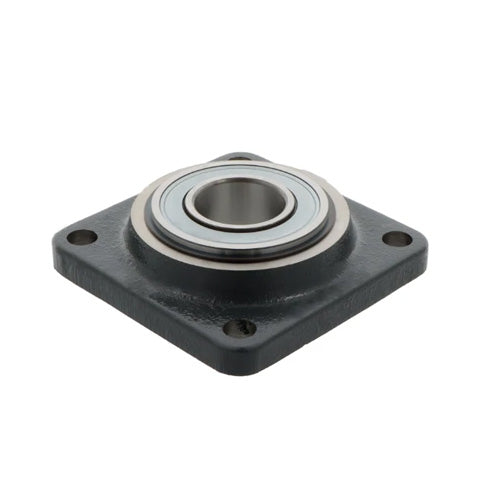

• INA PCCJ30 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 30mm Bore
  • INA
1 2

SKU: PCCJ30-INA

INA PCCJ30 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 30mm Bore

INA PCCJ30 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 30mm Bore
$125.08 ex VAT
$125.08 ex VAT
Sale Sold out

In stock

Price Break
4+ $83.78
9+ $79.08
19+ $78.14
29+ $77.19
39+ $76.25
49+ $75.31
59+ $70.61
69+ $69.66
79+ $68.72
89+ $67.78
99+ $65.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
PCCJ
Bolt Hole Centres:
82.5mm
Technical
d 30mm
L 108mm
B 34mm
A 24mm
A1 12mm
A2 13mm
a 28.9mm
J 82.5mm
N 11.5mm
Q M6
R max 76mm
S 3.2mm
U 29.7mm
Z 62mm (Tolerance: h8)
Mass 1.12 kg
Basic dynamic load rating Cr 30000 N
Basic static load rating Cor 21400 N
Fatigue limit load Cur 1080 N
Designation of housing CCJ06
Designation of bearing G5206-2RS-N
