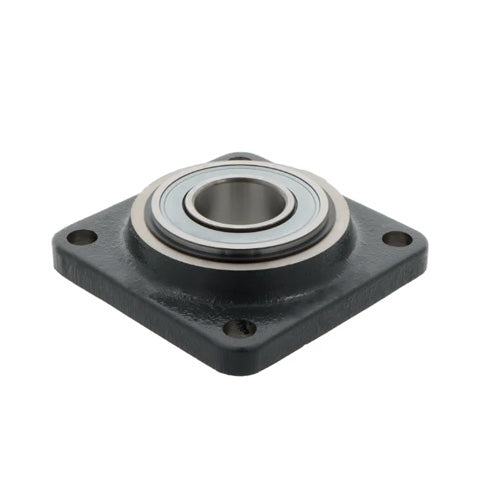

• INA PCCJ35 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 35mm Bore
  • INA
1 2

SKU: PCCJ35-INA

INA PCCJ35 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 35mm Bore

INA PCCJ35 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 35mm Bore
$174.95 ex VAT
$174.95 ex VAT
Sale Sold out

In stock

Price Break
4+ $117.19
9+ $110.60
19+ $109.29
29+ $107.97
39+ $106.65
49+ $105.34
59+ $98.75
69+ $97.44
79+ $96.12
89+ $94.80
99+ $92.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
PCCJ
Bolt Hole Centres:
92mm
Technical
d 35mm
L 118mm
B 36mm
A 26mm
A1 14mm
A2 14mm
a 33.8mm
J 92mm
N 14mm
Q M6
R max 88mm
S 3mm
U 31.7mm
Z 72mm (Tolerance: h8)
Mass 1.48 kg
Basic dynamic load rating Cr 39500 N
Basic static load rating Cor 29000 N
Fatigue limit load Cur 1470 N
Designation of housing CCJ07
Designation of bearing G5207-2RS-N
