• INA PCCJ40 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 40mm Bore
  • INA
1 2

SKU: PCCJ40-INA

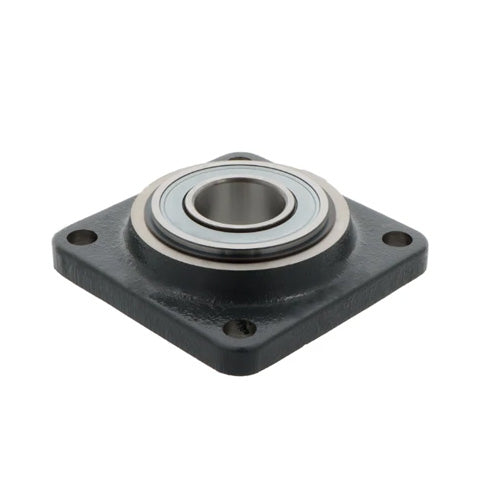

INA PCCJ40 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 40mm Bore

INA PCCJ40 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 40mm Bore
$176.36 ex VAT
$176.36 ex VAT
Sale Sold out

In stock

Price Break
4+ $118.13
9+ $111.49
19+ $110.17
29+ $108.84
39+ $107.51
49+ $106.18
59+ $99.55
69+ $98.22
79+ $96.89
89+ $95.57
99+ $92.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
PCCJ
Bolt Hole Centres:
101.5mm
Technical
d 40mm
L 130mm
B 38mm
A 28mm
A1 14mm
A2 15mm
a 38.8mm
J 101.5mm
N 14mm
Q M6
R max 98mm
S 3.2mm
U 33.7mm
Z 80mm (Tolerance: h8)
Mass 1.8 kg
Basic dynamic load rating Cr 50000 N
Basic static load rating Cor 38000 N
Fatigue limit load Cur 1910 N
Designation of housing CCJ08
Designation of bearing G5208-2RS-N
