SKU: PCF20-XL-INA

INA PCF20XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 20mm Bore

INA PCF20XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 20mm Bore
$41.87 ex VAT
$41.87 ex VAT
Sale Sold out

In stock

Price Break
4+ $28.04
9+ $26.47
19+ $26.15
29+ $25.84
39+ $25.52
49+ $25.21
59+ $23.63
69+ $23.32
79+ $23.00
89+ $22.69
99+ $22.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

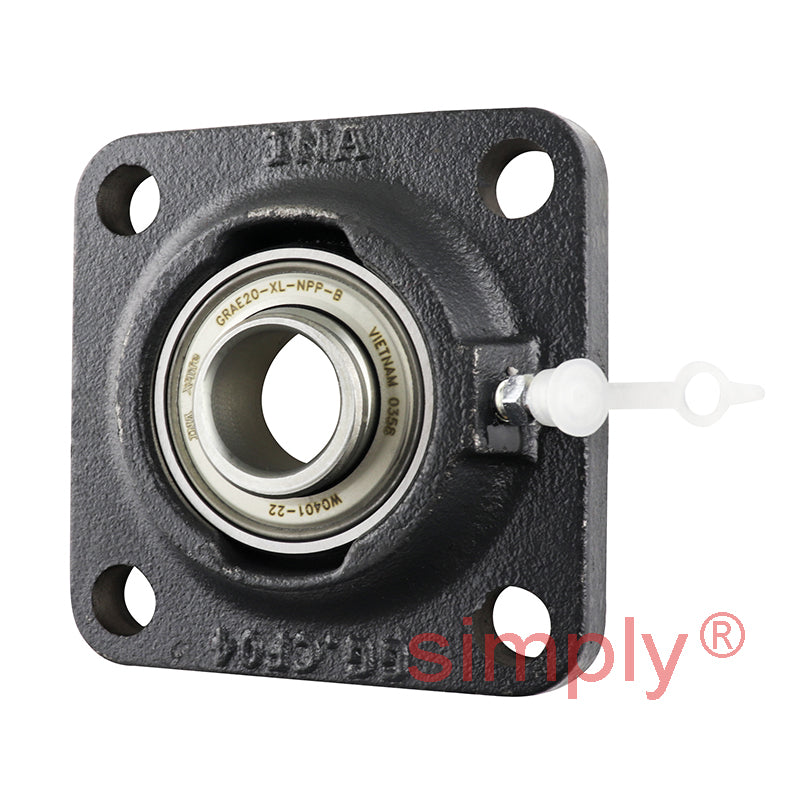

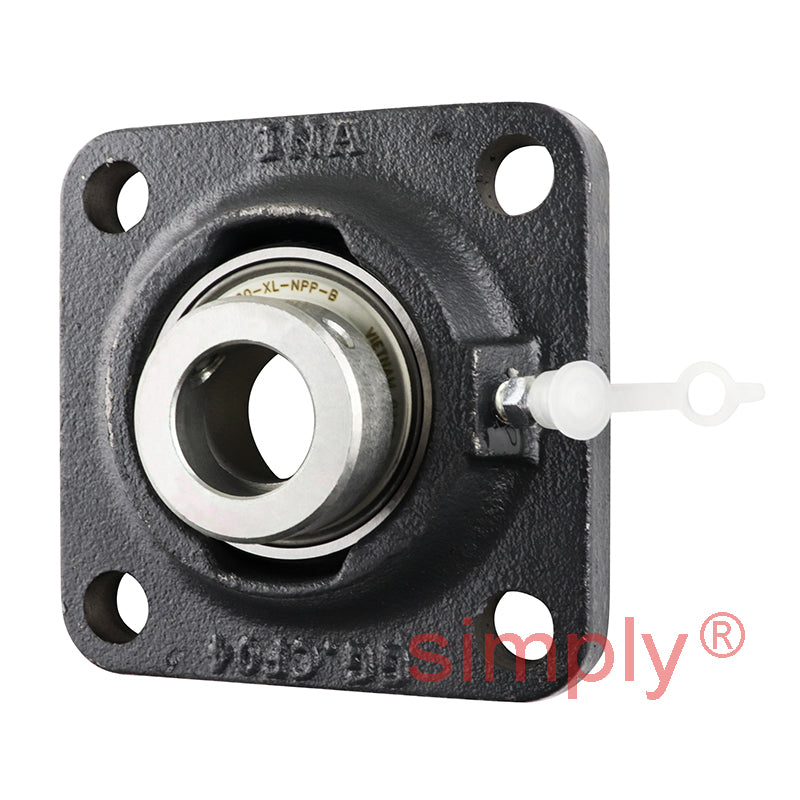

INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
PCF
Bolt Hole Centres:
63.5mm
Technical
d 20mm
L 86mm
U 34mm
A 20mm
A1 10mm
A2 10.5mm
B1 31mm
d3 max 33mm
J 63.5mm
N 11.5mm
Q M6
V 68mm
Mass 0.55 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing CF04
Designation of bearing GRAE20-XL-NPP-B
