• INA PCF40XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore
  • INA
1 2

SKU: PCF40-XL-INA

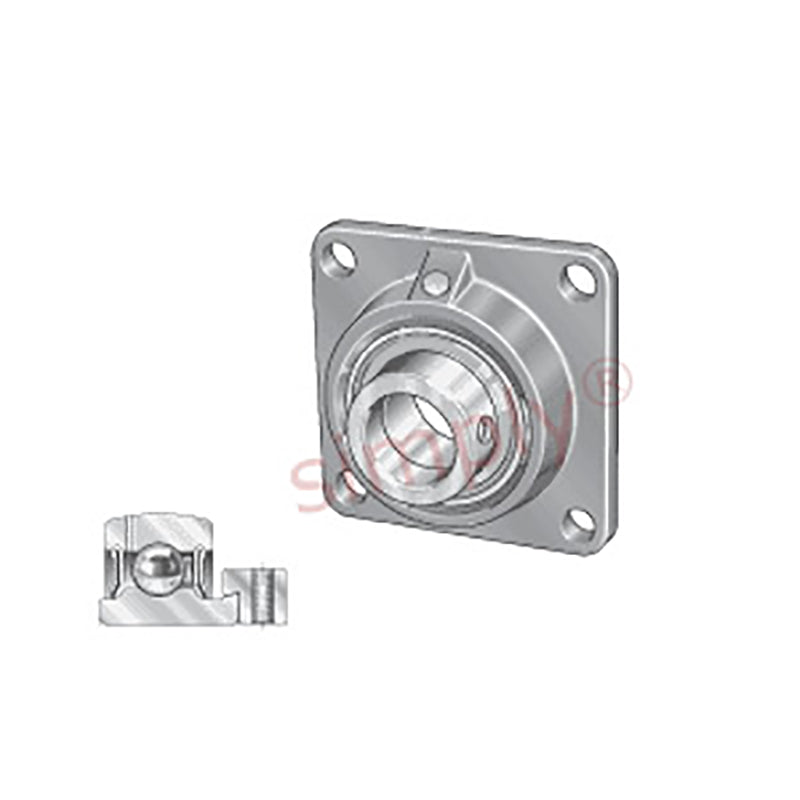

INA PCF40XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore

INA PCF40XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore
$77.06 ex VAT
$77.06 ex VAT
Sale Sold out

In stock

Price Break
4+ $51.62
9+ $48.72
19+ $48.14
29+ $47.56
39+ $46.98
49+ $46.40
59+ $43.50
69+ $42.92
79+ $42.34
89+ $41.76
99+ $40.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
PCF
Bolt Hole Centres:
101.5mm
Technical
d 40mm
L 130mm
U 51mm
A 28.8mm
A1 13mm
A2 18.3mm
B1 43.8mm
d3 max 58mm
J 101.5mm
N 14mm
Q M6
V 110mm
Mass 1.72 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 19800 N
Designation of housing CF08
Designation of bearing GRAE40-XL-NPP-B
