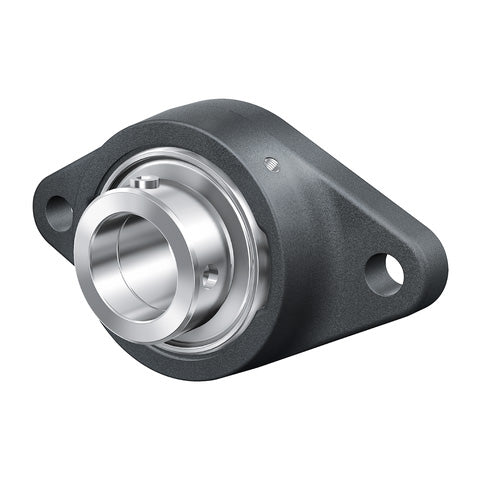

• INA PCFT25XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 25mm Bore
  • INA
1 2

SKU: PCFT25-XL-INA

INA PCFT25XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 25mm Bore

INA PCFT25XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 25mm Bore
$47.37 ex VAT
$47.37 ex VAT
Sale Sold out

In stock

Price Break
4+ $31.73
9+ $29.95
19+ $29.59
29+ $29.23
39+ $28.88
49+ $28.52
59+ $26.74
69+ $26.38
79+ $26.02
89+ $25.67
99+ $24.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
PCFT
Bolt Hole Centres:
99mm
Technical
d 25mm
H 124mm
U 36mm
A 20mm
A1 11mm
A2 12.5mm
B1 31mm
d3 max 37.5mm
J 99mm
L 70mm
N 11.5mm
Q M6mm
V 70mm
Mass 0.52 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing CFT05
Designation of bearing GRAE25-XL-NPP-B
