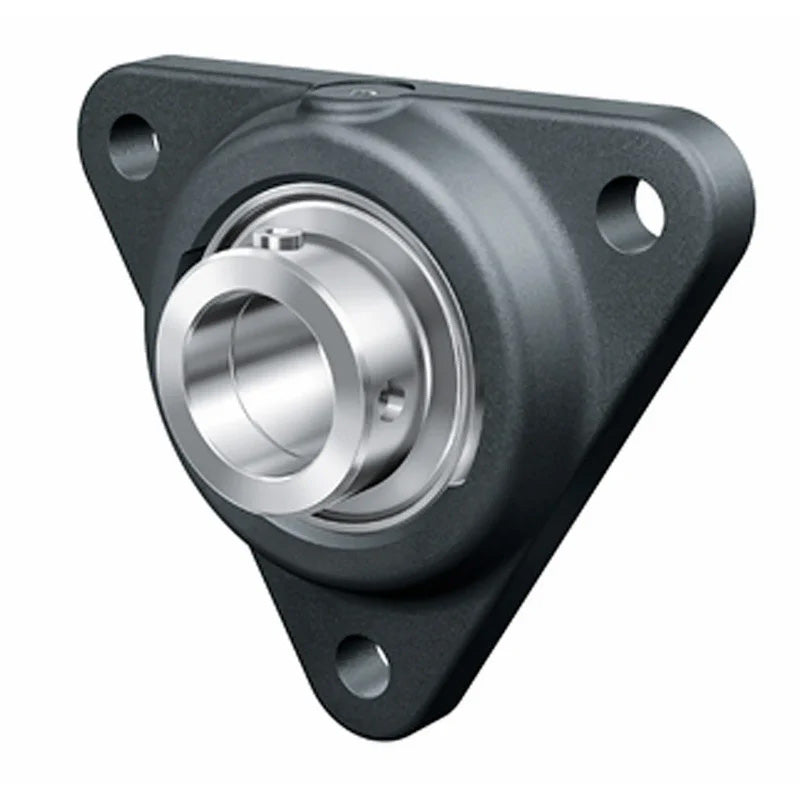

• INA PCFTR35XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 35mm Bore
  • INA
1 2

SKU: PCFTR35-XL

INA PCFTR35XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 35mm Bore

INA PCFTR35XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 35mm Bore
$86.26 ex VAT
$86.26 ex VAT
Sale Sold out

In stock

Price Break
4+ $57.78
9+ $54.53
19+ $53.88
29+ $53.23
39+ $52.59
49+ $51.94
59+ $48.69
69+ $48.04
79+ $47.39
89+ $46.74
99+ $45.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
PCFTR
Pitch Circle Diameter:
129.7mm
Technical
d 35mm
H2 128mm
U 45.1mm
A 27mm
A1 14mm
A2 15.6mm
B1 39mm
d3 max 55mm
H1 48mm
J 129.7mm
N 14mm
Q M6
Mass 1.34 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing CFTR07
Designation of bearing GRAE35-XL-NPP-B
