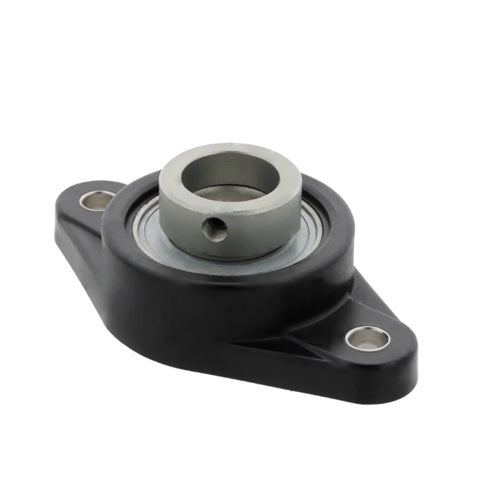

• INA PCJ30-TV-FA125.5 Four Bolt Plastic Square Housing with Eccentric Collar Insert 30mm Bore
  • INA
1 2

SKU: PCJ30-TV-FA125.5-INA

INA PCJ30-TV-FA125.5 Four Bolt Plastic Square Housing with Eccentric Collar Insert 30mm Bore

INA PCJ30-TV-FA125.5 Four Bolt Plastic Square Housing with Eccentric Collar Insert 30mm Bore
$74.79 ex VAT
$74.79 ex VAT
Sale Sold out

In stock

Price Break
4+ $50.10
9+ $47.28
19+ $46.72
29+ $46.16
39+ $45.59
49+ $45.03
59+ $42.22
69+ $41.65
79+ $41.09
89+ $40.53
99+ $39.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
PCJ
Bolt Hole Centres:
83mm
Technical
d 30mm
L 107mm
U 46mm
A 31.5mm
A1 14.3mm
A2 19.2mm
B1 35.8mm
d3 max 44mm
J 83mm
N 11mm
Q 1/4 - 28 UNF
V 80mm
Mass 0.57 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Load carrying capacity of housing Cor G 17700 N
Designation of housing GEH.CJ06-TV
Designation of bearing GRAE30-NPP-B-FA107/125.5
Bearing end cap, closed design (supplied with end cap) KASK06-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement) KASK06-S-R-NBR
Back seal components RWDR06-R-NBR
