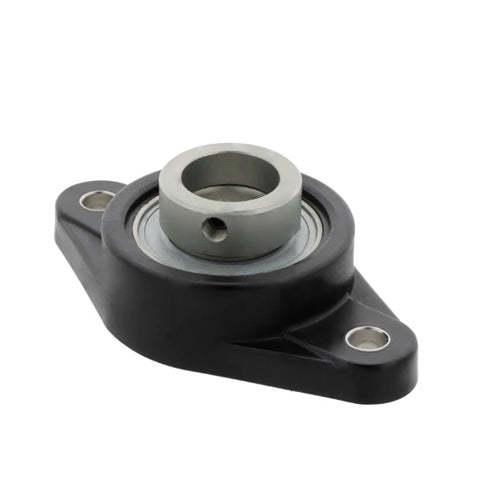

INA PCJT20-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 20mm Bore

Name: INA PCJT20-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 20mm Bore
Brand: INA
SKU: PCJT20-TV-FA125.5-INA
Price: 58.58 USD
Availability: InStock

$58.58 ex VAT

Sale Sold out

In stock

Price Break

4+ $39.24

9+ $37.04

19+ $36.59

29+ $36.15

39+ $35.71

49+ $35.27

59+ $33.07

69+ $32.63

79+ $32.19

89+ $31.74

99+ $30.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: PCJT
Bolt Hole Centres:: 90mm

Technical

d	20mm
H	114mm
U	38.9mm
A	26.5mm
A1	11.4mm
A2	15.4mm
B1	31mm
d3 max	33mm
J	90mm
L	63.8mm
N	11mm
Q	1/4 - 28 UNF
V	63.8mm
Mass	0.27 kg
Basic dynamic load rating Cr	13600 N
Basic static load rating Cor	6600 N
Load carrying capacity of housing Cor G	8500 N
Designation of housing	GEH.CJT04-TV
Designation of bearing	GRAE20-NPP-B-FA107/125.5
Bearing end cap, closed design (supplied with end cap)	KASK04-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK04-S-R-NBR
Back seal components (to be ordered separately)	RWDR04-R-NBR
