SKU: PCJT25-TV-FA125.5-INA

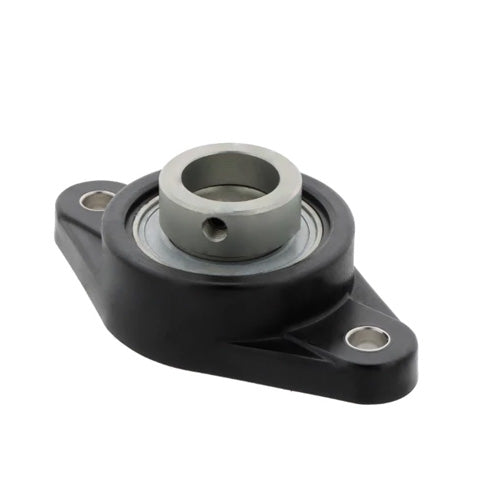

INA PCJT25-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 25mm Bore

Name: INA PCJT25-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 25mm Bore
Brand: INA
SKU: PCJT25-TV-FA125.5-INA
Price: 62.58 USD
Availability: InStock

$62.58 ex VAT

Sale Sold out

In stock

Price Break

4+ $41.92

9+ $39.56

19+ $39.09

29+ $38.62

39+ $38.15

49+ $37.68

59+ $35.33

69+ $34.85

79+ $34.38

89+ $33.91

99+ $32.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 25mm
Style:: PCJT
Bolt Hole Centres:: 99mm

Technical

d	25mm
H	130mm
U	40.5mm
A	29.1mm
A1	13.5mm
A2	17mm
B1	31mm
d3 max	37.5mm
J	99mm
L	70mm
N	11mm
Q	1/4 - 28 UNF
V	70mm
Mass	0.33 kg
Basic dynamic load rating Cr	14900 N
Basic static load rating Cor	7800 N
Load carrying capacity of housing Cor G	11100 N
Designation of housing	GEH.CJT05-TV
Designation of bearing	GRAE25-NPP-B-FA107/125.5
Bearing end cap, closed design (supplied with end cap)	KASK05-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK05-S-R-NBR
Back seal components (to be ordered separately)	RWDR05-R-NBR
