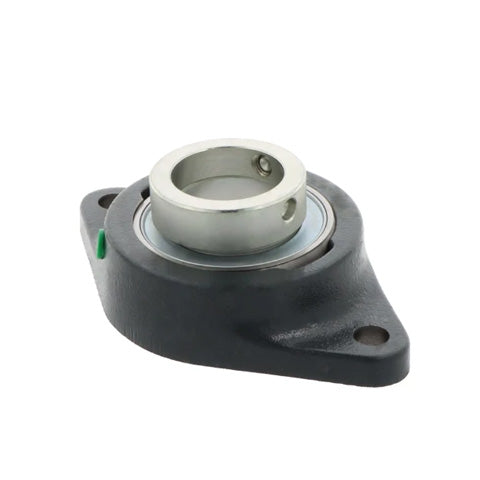

• INA PCJT25XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
  • INA
1 2

SKU: PCJT25-XL-N-FA125-INA

INA PCJT25XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore

INA PCJT25XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
$63.67 ex VAT
$63.67 ex VAT
Sale Sold out

In stock

Price Break
4+ $42.65
9+ $40.25
19+ $39.77
29+ $39.29
39+ $38.82
49+ $38.34
59+ $35.94
69+ $35.46
79+ $34.98
89+ $34.50
99+ $33.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
PCJT
Bolt Hole Centres:
99mm
Technical
d 25mm
H 124mm
U 42.5mm
A 26.5mm
A1 11mm
A2 19mm
B1 31mm
d3 max 37.5mm
J 99mm
L 70mm
N 11.5mm
Q M6mm
V 70mm
Mass 0.56 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing CJT05
Designation of bearing GRAE25-XL-NPP-B-FA125
Bearing end cap, closed design (to be ordered separately) KASK05
