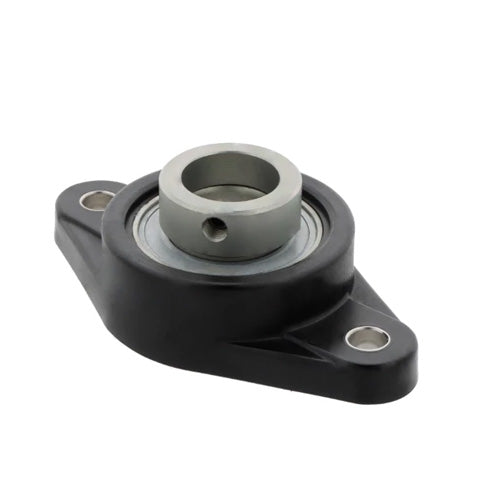

• INA PCJT35-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 35mm Bore
  • INA
1 2

SKU: PCJT35-TV-FA125.5-INA

INA PCJT35-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 35mm Bore

INA PCJT35-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 35mm Bore
$87.38 ex VAT
$87.38 ex VAT
Sale Sold out

In stock

Price Break
4+ $58.53
9+ $55.24
19+ $54.58
29+ $53.92
39+ $53.27
49+ $52.61
59+ $49.32
69+ $48.66
79+ $48.00
89+ $47.35
99+ $46.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
PCJT
Bolt Hole Centres:
130mm
Technical
d 35mm
H 163mm
U 47.5mm
A 32.8mm
A1 16.1mm
A2 18mm
B1 39mm
d3 max 51mm
J 130mm
L 90mm
N 13mm
Q 1/4 - 28 UNF
V 90mm
Mass 0.69 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Load carrying capacity of housing Cor G 14900 N
Designation of housing GEH.CJT07-TV
Designation of bearing GRAE35-NPP-B-FA107/125.5
Bearing end cap, closed design (supplied with end cap) KASK07-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement) KASK07-S-R-NBR
Back seal components (to be ordered separately) RWDR07-R-NBR
