SKU: PCJT40-TV-FA125.5-INA

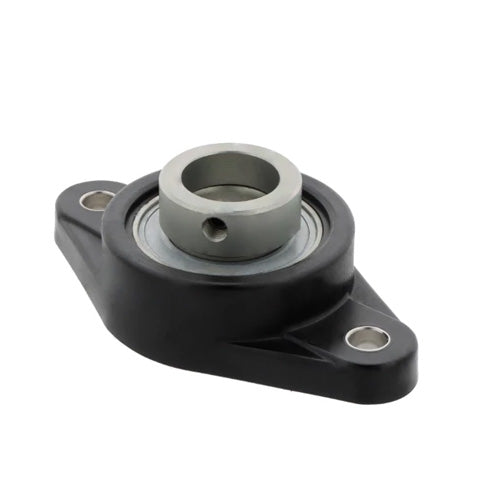

INA PCJT40-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 40mm Bore

Name: INA PCJT40-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 40mm Bore
Brand: INA
SKU: PCJT40-TV-FA125.5-INA
Price: 103.09 USD
Availability: InStock

$103.09 ex VAT

Sale Sold out

In stock

Price Break

4+ $69.06

9+ $65.18

19+ $64.40

29+ $63.62

39+ $62.85

49+ $62.07

59+ $58.19

69+ $57.42

79+ $56.64

89+ $55.86

99+ $54.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 40mm
Style:: PCJT
Bolt Hole Centres:: 144mm

Technical

d	40mm
H	176mm
U	54.3mm
A	36.9mm
A1	20mm
A2	21.5mm
B1	43.8mm
d3 max	58mm
J	144mm
L	100mm
N	14mm
Q	1/4 - 28 UNF
V	100mm
Mass	0.93 kg
Basic dynamic load rating Cr	34500 N
Basic static load rating Cor	19800 N
Load carrying capacity of housing Cor G	14900 N
Designation of housing	GEH.CJT08-TV
Designation of bearing	GRAE40-NPP-B-FA107/125.5
Bearing end cap, closed design (supplied with end cap)	KASK08-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK08-S-R-NBR
Back seal components (to be ordered separately)	RWDR08-R-NBR
