SKU: PCJT45-TV-FA125.5-INA

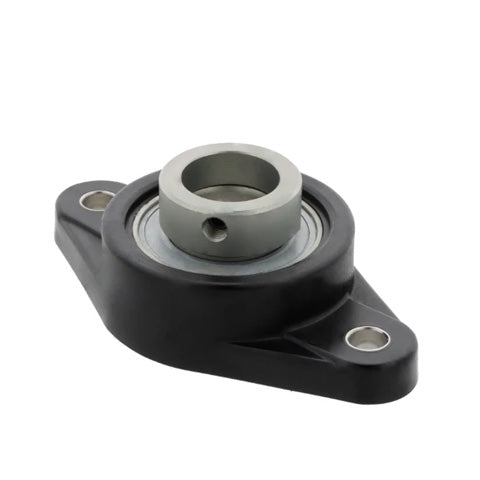

INA PCJT45-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 45mm Bore

Name: INA PCJT45-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 45mm Bore
Brand: INA
SKU: PCJT45-TV-FA125.5-INA
Price: 129.63 USD
Availability: InStock

$129.63 ex VAT

Sale Sold out

In stock

Price Break

4+ $86.83

9+ $81.95

19+ $80.97

29+ $80.00

39+ $79.02

49+ $78.05

59+ $73.17

69+ $72.19

79+ $71.22

89+ $70.24

99+ $68.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 45mm
Style:: PCJT
Bolt Hole Centres:: 148.5mm

Technical

d	45mm
H	188.5mm
U	56.8mm
A	41mm
A1	21mm
A2	24mm
B1	43.8mm
d3 max	63mm
J	148.5mm
L	108mm
N	17mm
Q	1/4 - 28 UNF
V	108mm
Mass	1.09 kg
Basic dynamic load rating Cr	34500 N
Basic static load rating Cor	20400 N
Load carrying capacity of housing Cor G	15100 N
Designation of housing	GEH.CJT09-TV
Designation of bearing	GRAE45-NPP-B-FA107/125.5
Bearing end cap, closed design (supplied with end cap)	KASK09-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK09-S-R-NBR
Back seal components (to be ordered separately)	RWDR09-R-NBR
