SKU: PCJT50-TV-FA125.5-INA

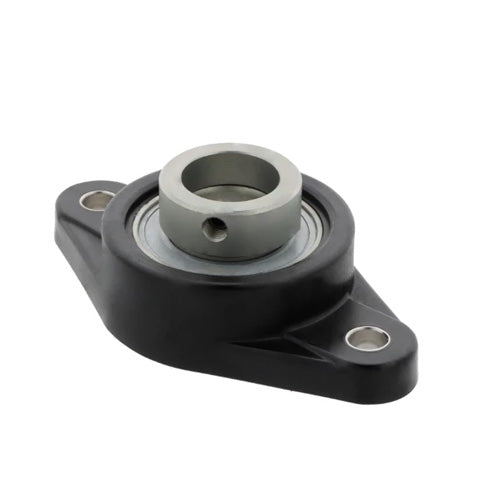

INA PCJT50-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 50mm Bore

Name: INA PCJT50-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 50mm Bore
Brand: INA
SKU: PCJT50-TV-FA125.5-INA
Price: 139.62 USD
Availability: InStock

$139.62 ex VAT

Sale Sold out

In stock

Price Break

4+ $93.52

9+ $88.27

19+ $87.22

29+ $86.17

39+ $85.11

49+ $84.06

59+ $78.81

69+ $77.76

79+ $76.71

89+ $75.66

99+ $73.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 50mm
Style:: PCJT
Bolt Hole Centres:: 157mm

Technical

d	50mm
H	197mm
U	57.8mm
A	43mm
A1	21mm
A2	25mm
B1	43.8mm
d3 max	69mm
J	157mm
L	115mm
N	17mm
Q	1/4 - 28 UNF
V	115mm
Mass	1.18 kg
Basic dynamic load rating Cr	37500 N
Basic static load rating Cor	23200 N
Load carrying capacity of housing Cor G	15600 N
Designation of housing	GEH.CJT10-TV
Designation of bearing	GRAE50-NPP-B-FA107/125.5
Bearing end cap, closed design (supplied with end cap)	KASK10-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK10-S-R-NBR
Back seal components (to be ordered separately)	RWDR10-R-NBR
