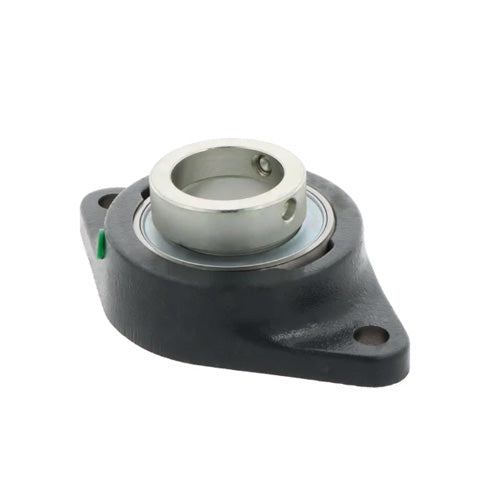

• INA PCJT60XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 60mm Bore
  • INA
1 2

SKU: PCJT60-XL-N-INA

INA PCJT60XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 60mm Bore

INA PCJT60XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 60mm Bore
$165.02 ex VAT
$165.02 ex VAT
Sale Sold out

In stock

Price Break
4+ $110.54
9+ $104.33
19+ $103.09
29+ $101.84
39+ $100.60
49+ $99.36
59+ $93.15
69+ $91.91
79+ $90.67
89+ $89.42
99+ $86.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
60mm
Style:
PCJT
Bolt Hole Centres:
202mm
Technical
d 60mm
H 238mm
U 73.6mm
A 46mm
A1 16mm
A2 34mm
B1 53.1mm
d3 max 84mm
J 202mm
L 138mm
N 18mm
Q M6mm
V 138mm
Mass 3.25 kg
Basic dynamic load rating Cr 56000 N
Basic static load rating Cor 36000 N
Designation of housing CJT12
Designation of bearing GRAE60-XL-NPP-B
Bearing end cap, closed design (to be ordered separately) KASK12
