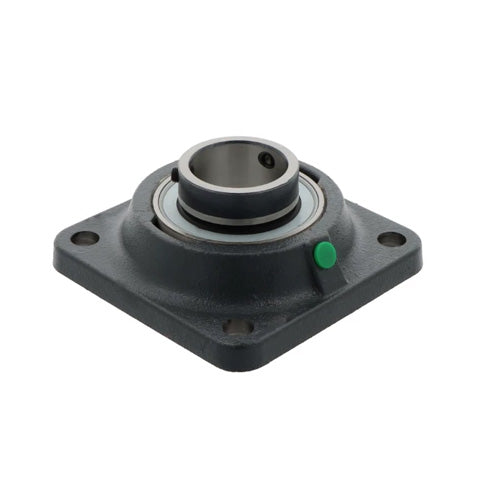

• INA PCJY35XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 35mm Bore
  • INA
1 2

SKU: PCJY35-XL-N-INA

INA PCJY35XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 35mm Bore

INA PCJY35XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 35mm Bore
$60.12 ex VAT
$60.12 ex VAT
Sale Sold out

In stock

Price Break
4+ $40.27
9+ $38.01
19+ $37.56
29+ $37.11
39+ $36.65
49+ $36.20
59+ $33.94
69+ $33.49
79+ $33.03
89+ $32.58
99+ $31.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
PCJY
Bolt Hole Centres:
92mm
Technical
d 35mm
L 118mm
U 46.45mm
A 30.5mm
A1 12.5mm
A2 21mm
B 35mm
J 92mm
N 14mm
Q M6
V 100mm
Mass 1.38 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing CJ07
Designation of bearing GAY35-XL-NPP-BBearing end cap, closed design (to be ordered separately)
KASK07 N/A
