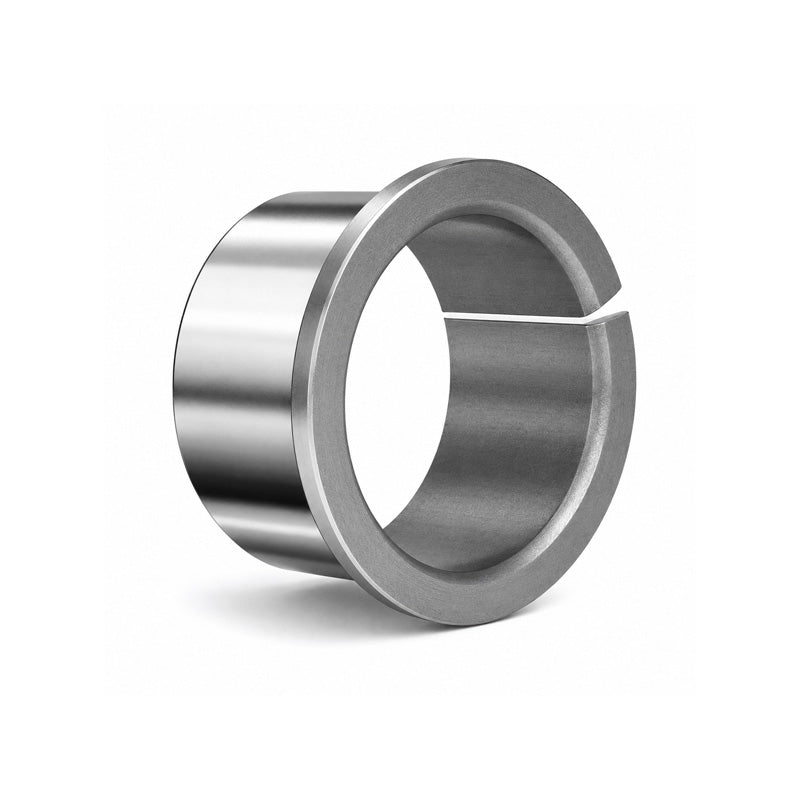

SKF PCMF101212E Metric Flanged Bush 10x12x12mm

SKU: PCMF101212E-SKF

SKF PCMF101212E Metric Flanged Bush 10x12x12mm

$5.14 ex VAT
$5.14
ex VAT
In stock

Quantity Price Breaks

9 $4.57
19 $4.32
29 $4.27
39 $4.21
49 $4.16
69 $4.11
99 $3.86
199 $3.80
249 $3.75
499 $3.70
999 $3.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF PCMF101212E Metric Flanged Bush 10x12x12mm
SKU: PCMF101212E-SKF

SKF PCMF101212E Metric Flanged Bush 10x12x12mm

$5.14 ex VAT
$5.14
ex VAT

Description

PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
