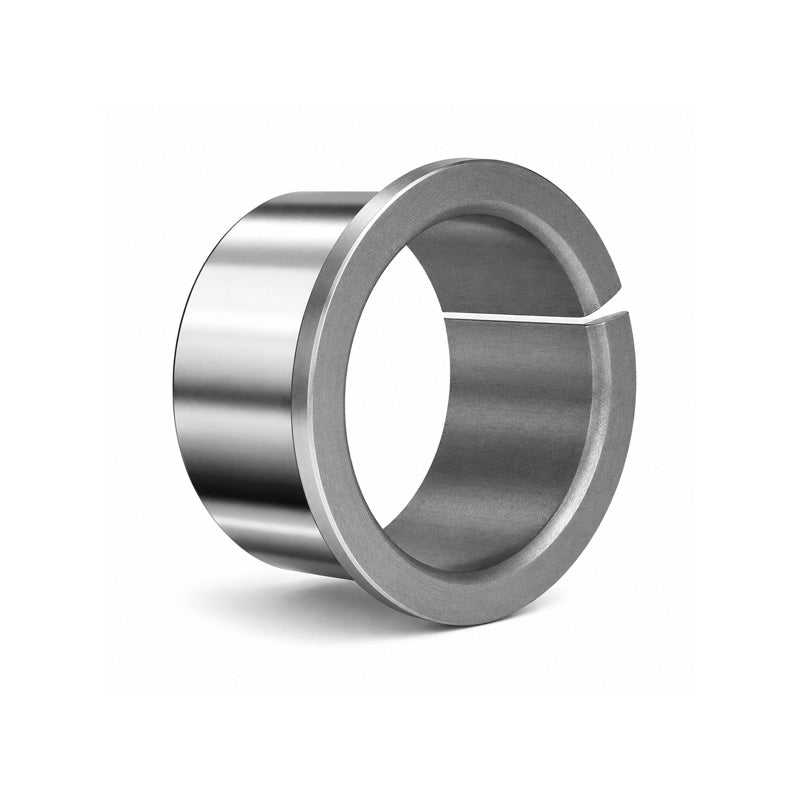

SKF PCMF161812E Metric Flanged Bush 16x18x12mm

SKU: PCMF161812E-SKF

SKF PCMF161812E Metric Flanged Bush 16x18x12mm

$3.44 ex VAT
$3.44
ex VAT
In stock

Quantity Price Breaks

9 $3.06
19 $2.89
29 $2.86
39 $2.82
49 $2.79
69 $2.75
99 $2.58
199 $2.55
249 $2.51
499 $2.48
999 $2.41
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF PCMF161812E Metric Flanged Bush 16x18x12mm
SKU: PCMF161812E-SKF

SKF PCMF161812E Metric Flanged Bush 16x18x12mm

$3.44 ex VAT
$3.44
ex VAT

Description

PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
