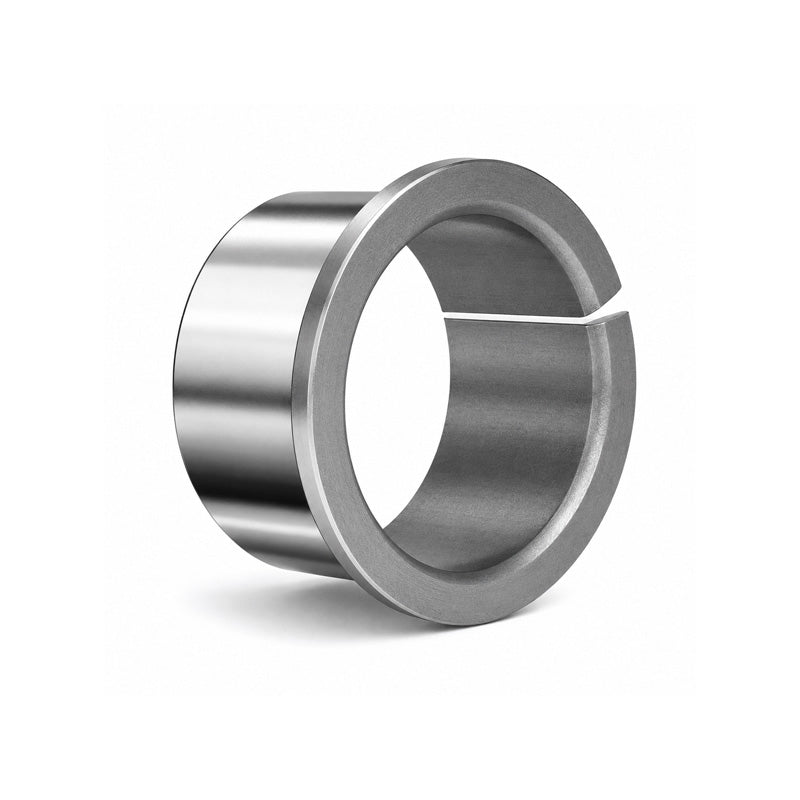

SKF PCMF202315E Metric Flanged Bush 20x23x15mm

SKU: PCMF202315E-SKF

SKF PCMF202315E Metric Flanged Bush 20x23x15mm

$11.70 ex VAT
$11.70
ex VAT
In stock

Quantity Price Breaks

9 $10.41
19 $9.83
29 $9.71
39 $9.59
49 $9.48
69 $9.36
99 $8.78
199 $8.66
249 $8.54
499 $8.42
999 $8.19
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF PCMF202315E Metric Flanged Bush 20x23x15mm
SKU: PCMF202315E-SKF

SKF PCMF202315E Metric Flanged Bush 20x23x15mm

$11.70 ex VAT
$11.70
ex VAT

Description

PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
