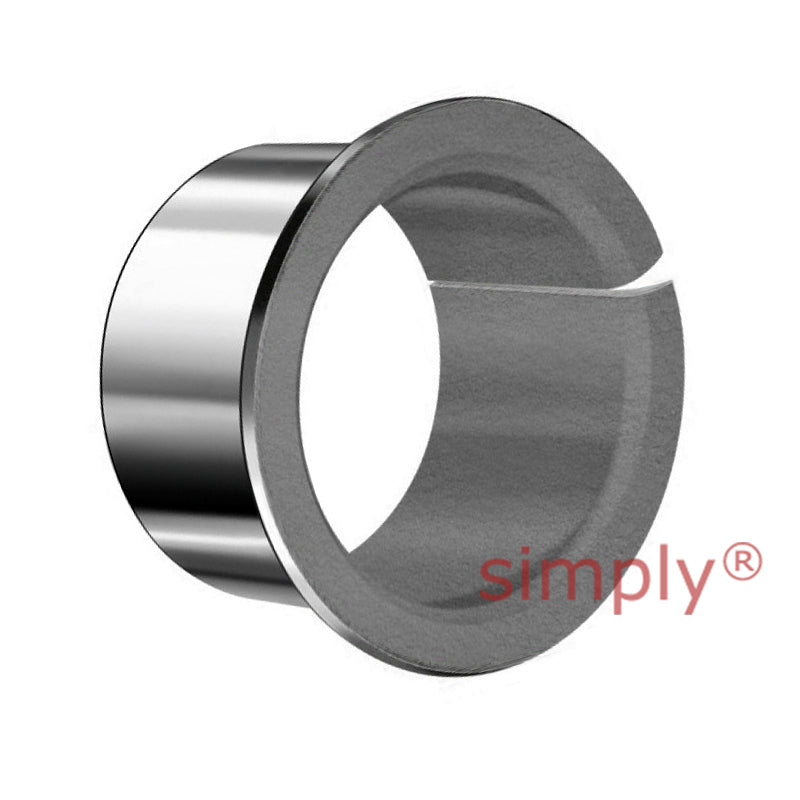

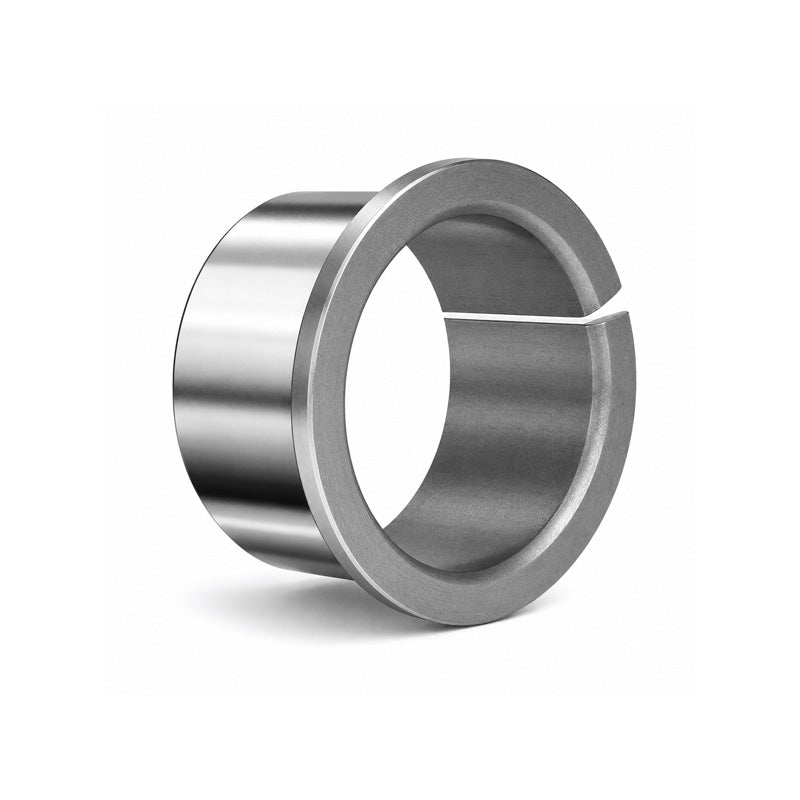

SKF PCMF202316.5E Metric Flanged Bush 20x23x16.5mm

SKU: PCMF202316.5E-SKF

SKF PCMF202316.5E Metric Flanged Bush 20x23x16.5mm

$9.29 ex VAT
$9.29
ex VAT
In stock

Quantity Price Breaks

9 $8.27
19 $7.80
29 $7.71
39 $7.62
49 $7.52
69 $7.43
99 $6.97
199 $6.87
249 $6.78
499 $6.69
999 $6.50
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF PCMF202316.5E Metric Flanged Bush 20x23x16.5mm
SKU: PCMF202316.5E-SKF

SKF PCMF202316.5E Metric Flanged Bush 20x23x16.5mm

$9.29 ex VAT
$9.29
ex VAT

Description

PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
