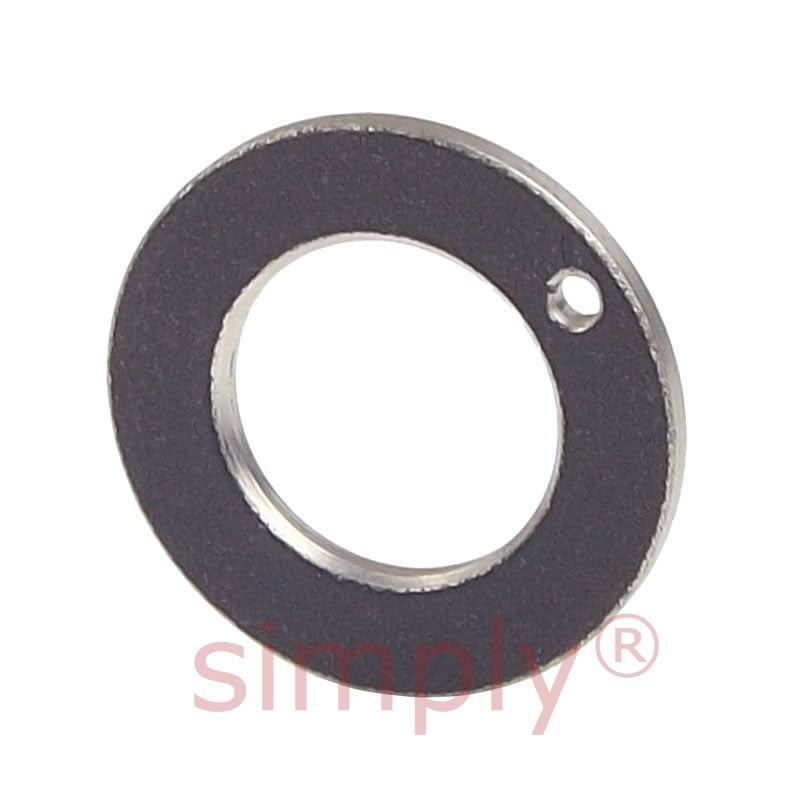

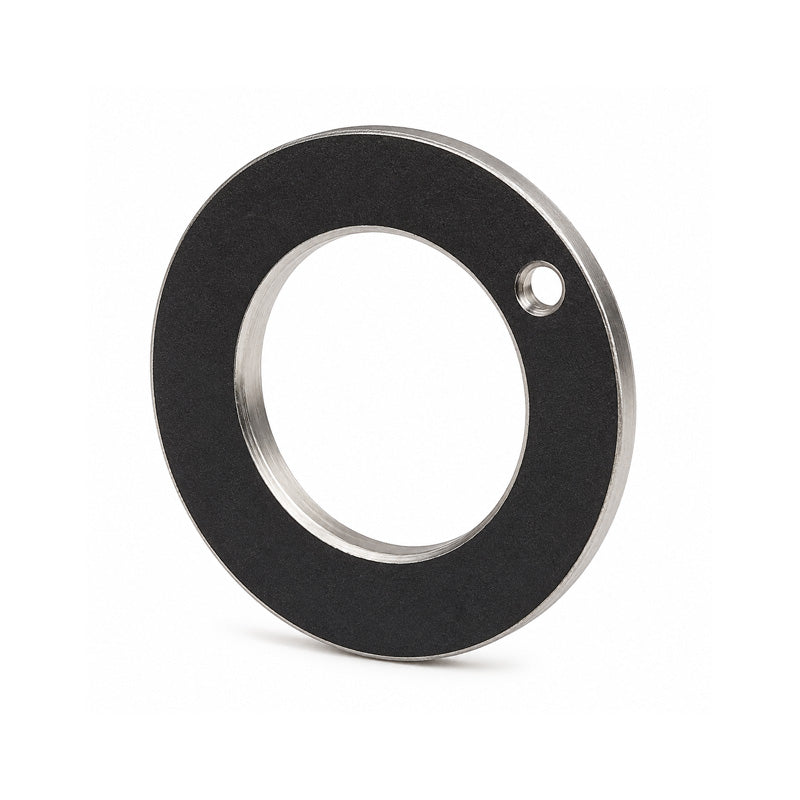

PCMW629002E Premier Budget Metric Thrust Washer 62x90x2mm

SKU: PCMW629002E-EU

PCMW629002E Premier Budget Metric Thrust Washer 62x90x2mm

$16.63 ex VAT
$16.63
ex VAT
Equivalent to: TUW 60
In stock

Quantity Price Breaks

9 $14.80
19 $13.97
29 $13.80
39 $13.64
49 $13.47
69 $13.30
99 $12.47
199 $12.31
249 $12.14
499 $11.97
999 $11.64
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
PCMW629002E Premier Budget Metric Thrust Washer 62x90x2mm
SKU: PCMW629002E-EU

PCMW629002E Premier Budget Metric Thrust Washer 62x90x2mm

$16.63 ex VAT
$16.63
ex VAT

Description

Premier Budget PCMW-E Thrust Washers: Thrust washers of triple-layer PTFE composite material. Suitable for space-saving axial locating bearing arrangements. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
