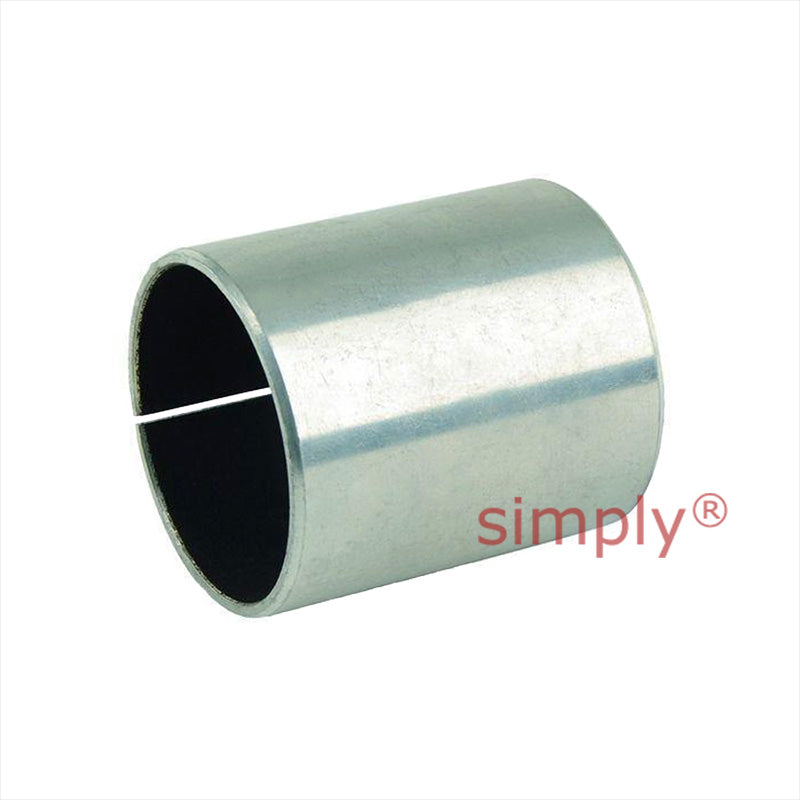

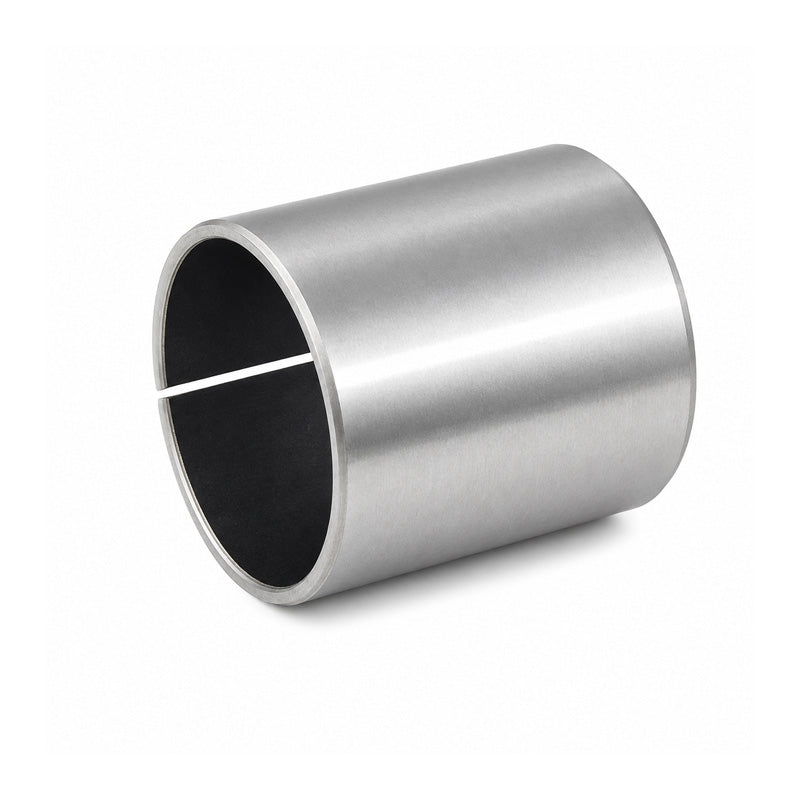

SKF PCZ1616E Plain Bush 1x1.125x1 inch

PCM-E Plain Bushings: Plain bushings of triple-layer PTFE composite material. Suitable for bearing arrangements that have to support radial loads only. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.

Brand / Quality:

SKF - High Quality

Inside Diameter:

25.4mm = 1 inch

Outside Diameter:

28.58mm = 1.125 (1-1/8) inch

Length:

25.4mm = 1 inch
