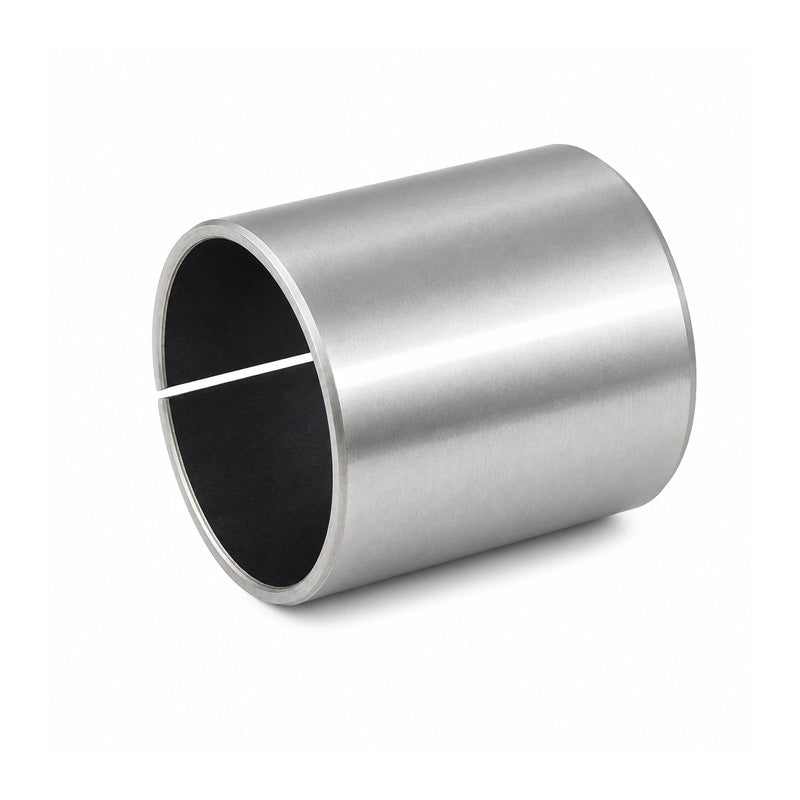

SKF PCZ9648E Plain Bush 6x6.187x3 inch

PCM-E Plain Bushings: Plain bushings of triple-layer PTFE composite material. Suitable for bearing arrangements that have to support radial loads only. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.

Brand / Quality:

SKF - High Quality

Inside Diameter:

152.4mm = 6 inch

Outside Diameter:

157.16mm = 6.187 (6-3/16) inch

Length:

76.2mm = 3 inch
